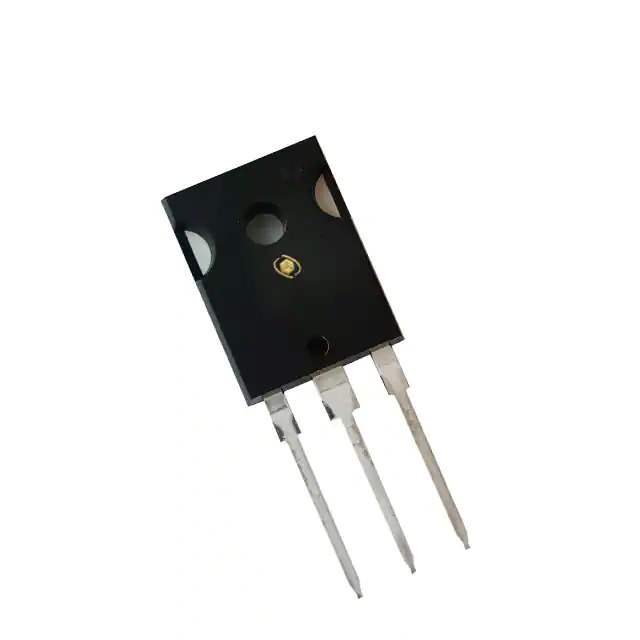

G3S12020B Real Image
Same model may have multiple batches, images only for reference.

G3S12020B

Part No G3S12020B
Manufacturer Global Power Technologies Group
Catalog Diodes, Rectifiers - Arrays
Description SIC SCHOTTKY DIODE 1200V 20A 3-P
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Global Power Technologies Group
Package Cut Tape (CT)Tape & Box (TB)
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 37A (DC)
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 10 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 50 µA @ 1200 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247AC
Standard Package 30 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1223726-G3S12020B
Ultra Librarian 3D Model Ultra Librarian G3S12020B CAD Model

Description

The 1223726-G3S12020B is a high-speed SiC (Silicon Carbide) Schottky diode array.

  • Maximum Reverse Voltage: 1200V
  • Forward Voltage: 1.7V @ 10A
  • Recovery Time: No recovery time
  • Configuration: 1 pair of common cathode
  • Reverse Recovery Time: 0ns
  • Temperature Range: -55°C to 175°C
  • Mounting: Through hole using a TO-247-2 package
  • Current Rating: 37A (DC)
  • Manufacturer: Global Power Technologies Group
  • Status: Active product
  • Description: Ensure efficient power rectification in your electronic circuits with this high-speed SiC Schottky diode array.
