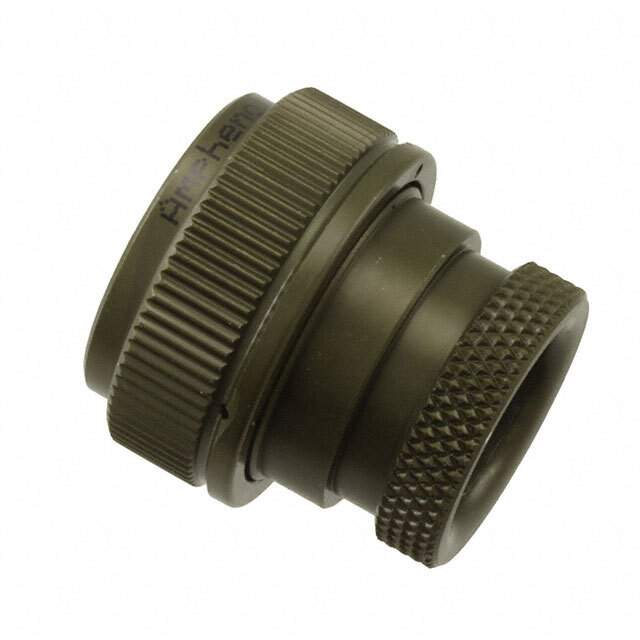

The M85049/69-13W is an adapter manufactured by Glenair, Inc. It is designed for use with circular connectors, providing a means to attach a cable shield to the connector body. This adapter ensures proper grounding and EMI/RFI shielding, which are crucial in applications requiring signal integrity and protection against electromagnetic interference.

Applications

• Aerospace and defense systems
• Industrial automation equipment
• Telecommunications infrastructure
• Medical devices
• Transportation systems
• High-reliability electronic systems

Features

• Designed for circular connectors
• Provides cable shield termination
• Ensures proper grounding
• EMI/RFI shielding
• Durable construction
• Corrosion-resistant materials

Benefits

• Enhances signal integrity by providing effective EMI/RFI shielding
• Ensures reliable grounding to prevent electrical noise and interference
• Protects sensitive electronic components from electromagnetic radiation
• Improves the overall performance and reliability of electronic systems
• Meets stringent industry standards for performance and durability

Additional Details

The M85049/69-13W adapter is typically made from materials such as aluminum or stainless steel to provide excellent mechanical strength and corrosion resistance. The adapter is designed to be compatible with specific circular connector sizes and types, ensuring a secure and reliable connection. The cable shield is typically attached to the adapter using a clamping mechanism or similar method to provide a low-impedance path to ground. Proper installation of the adapter is critical to achieving optimal EMI/RFI shielding performance.
