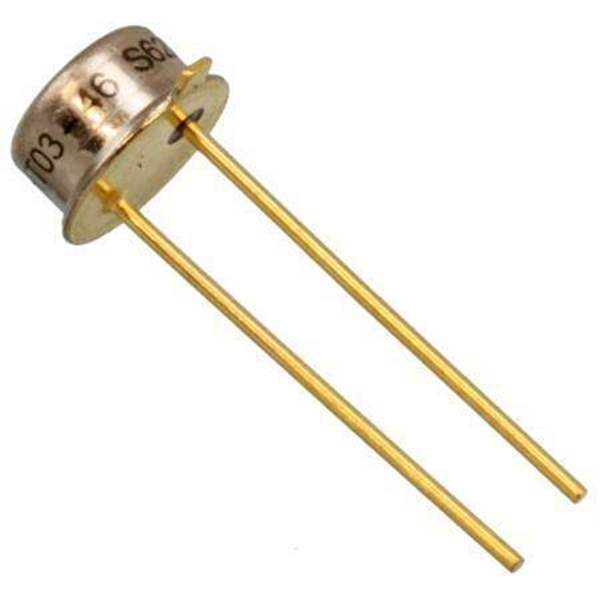

GB02SHT06-46 GeneSiC Semiconductor
Same model may have multiple batches, images only for reference.

GB02SHT06-46

Part No GB02SHT06-46
Manufacturer GeneSiC Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SIL CARBIDE 600V 4A TO46
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer GeneSiC Semiconductor
Category Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Packaging Bulk
Part Status Active
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 1.6 V @ 1 A
Speed No Recovery Time > 500mA (Io)
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Capacitance @ Vr, F 76pF @ 1V, 1MHz
Operating Temperature - Junction -55°C ~ 225°C
Win Source Part Number WS1305557-GB02SHT06-46
Ultra Librarian 3D Model Ultra Librarian GB02SHT06-46 CAD Model

Description

Features
● 600 V Schottky rectifier
● 210 °C maximum operating temperature
● Zero reverse recovery charge
●  Superior surge current capability
● Positive temperature coefficient of VF
●  Temperature independent switching behavior
● Lowest figure of merit QC/IF
● Available screened to Mil-PRF-19500
