Products specifications

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 80V
Current - Average Rectified (Io) (per Diode) 100A
Voltage - Forward (Vf) (Maximum) @ If 840mV @ 100A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 2mA @ 20V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Chassis Mount
Package TO-249AB
Manufacturer Package TO-249AB
Win Source Part Number 795496-FST10080
Popularity Medium
Supply and Demand Status Limited
Quantity per package 40
Family Name FST10080
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FST10080 CAD Model

Description

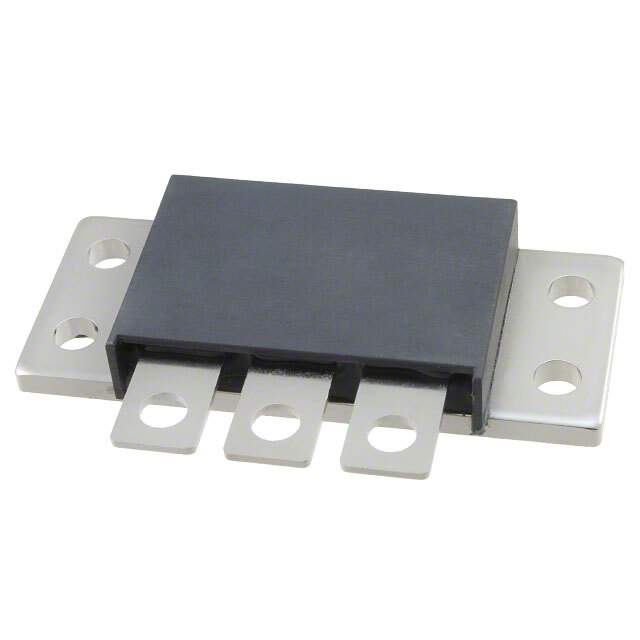

The Schottky Diode from GeneSiC Semiconductor is a high-performance diode designed for chassis mount applications.

  • Fast Recovery Speed: 200mA (Io)
  • Average Rectified Current: 100A per diode
  • Diode Configuration: 1 pair common cathode
  • Package Type: TO-249AB
  • Voltage Forward (Vf) @ Maximum Current (If): 840mV
  • Maximum Reverse Voltage (Vr): 80V
  • Operating Temperature Range: -55°C to 150°C
  • ECCN: EAR99
  • Package Quantity: 40
  • Application: Discrete Semiconductor Products
