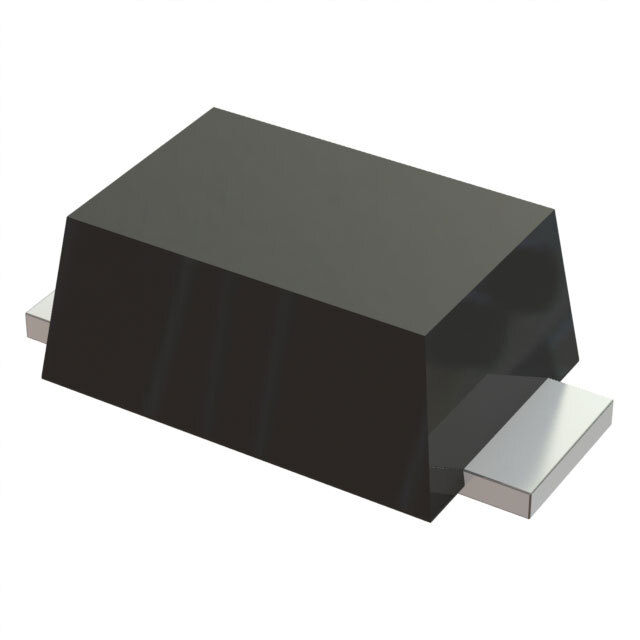

Same model may have multiple batches, images only for reference.
SMF18A-HM3-08 General Semiconductor – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SMF18A-HM3-08

Part No SMF18A-HM3-08
Manufacturer General Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 18VWM 29.2VC SMF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 18V
Voltage - Breakdown (Min) 20V
Voltage - Clamping (Max) @ Ipp 29.2V
Current - Peak Pulse (10/1000µs) 6.8A
Power - Peak Pulse 200W
Power Line Protection No
Capacitance @ Frequency 320pF @ 1MHz
Operating Temperature -65°C ~ 175°C (TJ)
Grade Automotive
Qualification AEC-Q101
Mounting Type Surface Mount
Package / Case DO-219AB
Supplier Device Package DO-219AB (SMF)
Ultra Librarian 3D Model Ultra Librarian SMF18A-HM3-08 CAD Model
