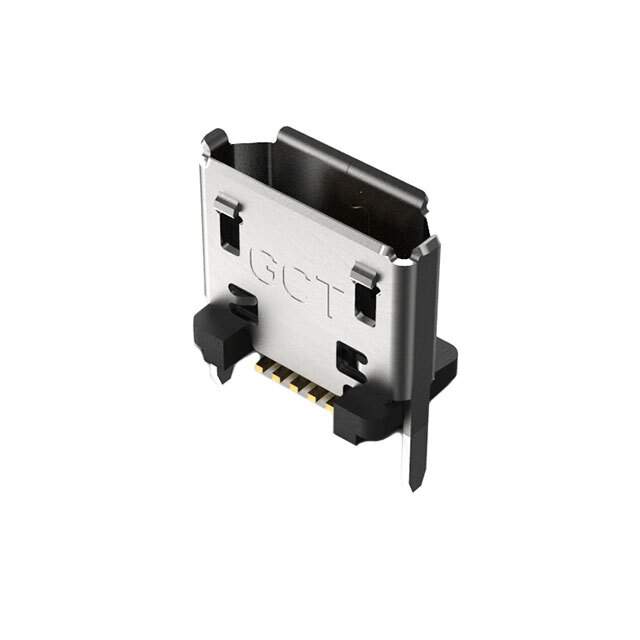

USB3140-30-0230-1-C Real Image1 USB3140-30-0230-1-C Real Image2
Same model may have multiple batches, images only for reference.
USB3140-30-0230-1-C Real Image1 USB3140-30-0230-1-C Real Image2
USB3140-30-0230-1-C Real Image1 USB3140-30-0230-1-C Real Image2
Same model may have multiple batches, images only for reference.

USB3140-30-0230-1-C

Part No USB3140-30-0230-1-C
Manufacturer GCT
Catalog USB, DVI, HDMI Connectors
Description MICRO B SKT, VERTICAL, SMT, 30", / USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Through Hole
Datasheet
USB3140-30-0230-1-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors>USB, DVI, HDMI Connector Assemblies
Mfr GCT
Series USB3140
Package Tape & Reel
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Through Hole
Mounting Feature Vertical
Termination Solder
Features Pick and Place Cap
Ingress Protection -
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A, 1.8A
Voltage - Rated 30VAC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number USB3140
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 500 pcs
Win Source Part Number 1383809-USB3140-30-0230-1-C
Ultra Librarian 3D Model Ultra Librarian USB3140-30-0230-1-C CAD Model

Description

The 1383809-USB3140-30-0230-1-C is a USB micro B connector assembly designed for various applications. It features a pick and place cap for easy installation and a shielded design for reliable and secure connectivity.

  • Pick and Place Cap: Yes
  • Shielded: Yes
  • Number of Contacts: 5
  • USB Standard: USB 2.0
  • Voltage Rating: 30VAC
  • Current Rating: 1A
  • Mounting Types: Surface Mount and Through-Hole
  • Manufacturer: GCT
