Same model may have multiple batches, images only for reference.

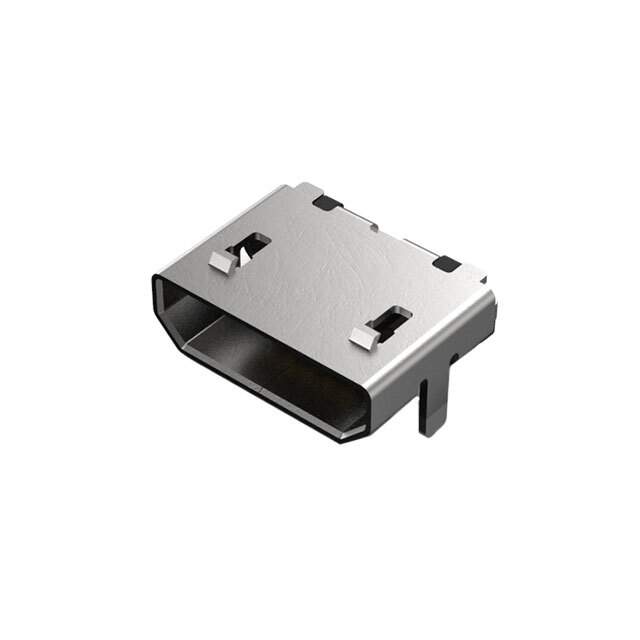

USB3076-30-A Real Image
Same model may have multiple batches, images only for reference.

USB3076-30-A

Part No USB3076-30-A
Manufacturer GCT
Catalog USB, DVI, HDMI Connectors
Description MICRO B SKT, BOTTOM-SMT, R/A, 30
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 9 Weeks
Features USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle; Through Hole
Manufacturer GCT
Series USB3076
Package Reel - TR
Operating Temperature Range -30°C ~ 85°C
Mounting Surface Mount, Right Angle; Through Hole
Family Name USB3076
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2073-USB3076-30-ATR, 2073-USB3076-30-ADKR, 2073-USB3076-30-ACT
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 902330-USB3076-30-A
Ultra Librarian 3D Model Ultra Librarian USB3076-30-A CAD Model

Description

The USB3076 series from GCT is a micro B USB 2.0 receptacle connector with 5 positions. It is available in surface mount and through hole mounting options.

  • Mounting Options: Surface Mount and Through Hole
  • Angle: Right-angled
  • Package: Reel
  • Operating Temperature Range: -30°C to 85°C
  • Popularity: Popular choice among connectors
  • Supply and Demand Status: Balanced
  • REACH: Unaffected
  • Production Lead Time: 9 weeks
