Same model may have multiple batches, images only for reference.

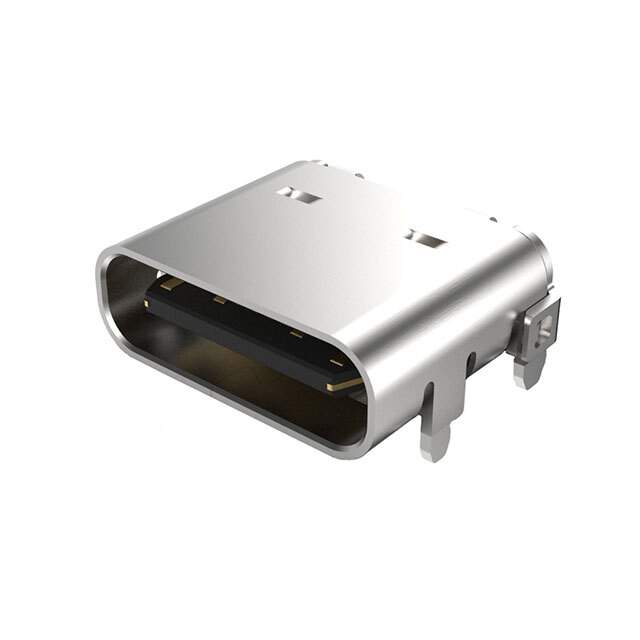

USB4105-GF-A Real Image
Same model may have multiple batches, images only for reference.

USB4105-GF-A

Part No USB4105-GF-A
Manufacturer GCT
Catalog USB, DVI, HDMI Connectors
Description CONN RCP USB2.0 TYP C 24P SMD RA / USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle; Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr GCT
Series USB4105
Package Tape & Reel
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24 (16+8 Dummy)
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features Board Guide, Solder Retention Tab
Temperature Range - Operating -40°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.25A, 1.25A, 5A, 6.25A
Voltage - Rated 48VDC
Mating Cycles 20000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number USB4105
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1341234-USB4105-GF-A
Ultra Librarian 3D Model Ultra Librarian USB4105-GF-A CAD Model

Description

The 1341234-USB4105-GF-A is a USB-C (USB TYPE-C) connector type optoelectronics product manufactured by GCT.

  • Connector Type: USB-C (USB TYPE-C)
  • Features: Board Guide, Solder Retention Tab
  • Shielding: Shielded
  • Material Flammability Rating: UL94 V-0
  • Voltage - Rated: 48VDC
  • Current Rating (Amps): 0.25A, 1.25A, 5A, 6.25A
  • Mating Cycle: 20000
  • MSL: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Packaging: Tape & Reel (TR)
  • Standard Package: 800
  • Mounting Feature: Horizontal
  • Mounting Type: Surface Mount, Through Hole
