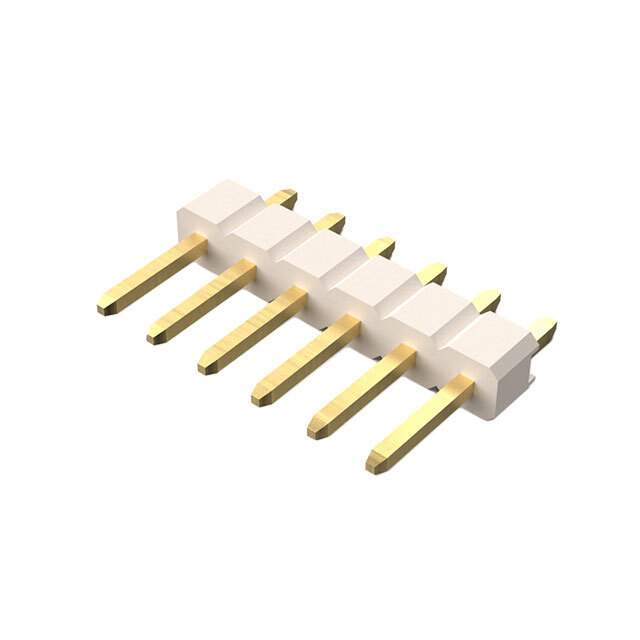

BG301-06-A-0540-L-B

Name: BG301-06-A-0540-L-B
Brand: GCT
SKU: 1349223
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	BG301-06-A-0540-L-B
Manufacturer	GCT
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 6POS 2.54MM / Connector Header Surface Mount, Right Angle 6 position 0.100" (2.54mm)
Datasheet	BG301-06-A-0540-L-B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	GCT
Series	BG301
Package	Tape & Reel
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.213" (5.40mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP) , Glass Filled
Features	Pick and Place
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A per Contact
Contact Finish Thickness - Post	Flash
Applications	General Purpose
Base Product Number	BG301
Standard Package	1,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349223-BG301-06-A-0540-L-B
Ultra Librarian 3D Model	Ultra Librarian BG301-06-A-0540-L-B CAD Model

Alternative Products

Description

The BG301 series from GCT is a 6 position header connector with male pins.

Fastening Type: Push-Pull
Mounting Type: Surface Mount, Right Angle
Voltage Rating: 250VAC/DC
Operating Temperature: -40°C to 105°C
Current Rating: 3A per contact
REACH: Unaffected
Packaging: Tape & Reel
Insulation Color: Natural
