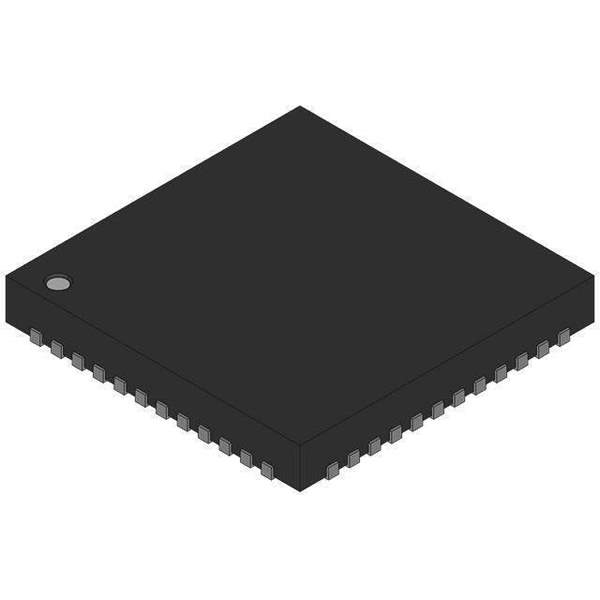

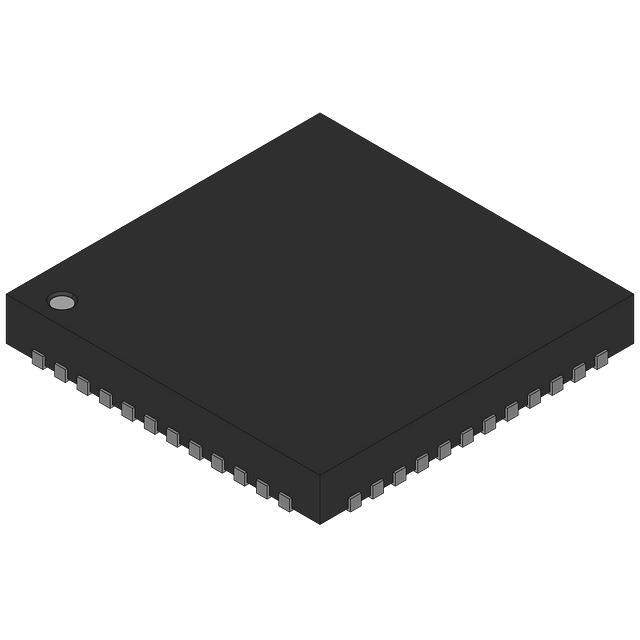

S9S08AW16AE0MFT Real Image
Same model may have multiple batches, images only for reference.

S9S08AW16AE0MFT

Part No S9S08AW16AE0MFT
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 16KB FLASH 48QFN / S08 S08 Microcontroller IC 8-Bit 40MHz 16KB (16K x 8) FLASH 48-QFN-EP (7x7)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>Microcontrollers
Manufacturer Freescale Semiconductor
Packaging Bulk
Core Processor S08
Core Size 8-Bit
Speed 40MHz
Connectivity I2C, SCI, SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 38
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Data Converters A/D 8x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Case / Package 48-VFQFN Exposed Pad
Supplier Device Package 48-QFN-EP (7x7)
Base Product Number S9S08
ECCN 3A991A2
HTSUS 8542.31.0001
Other Part Number FREFRES9S08AW16AE0MFT,2156-S9S08AW16AE0MFT
Standard Package 1
Win Source Part Number 1322121-S9S08AW16AE0MFT
Ultra Librarian 3D Model Ultra Librarian S9S08AW16AE0MFT CAD Model

Description

The Freescale Semiconductor is an integrated circuit electronic component with a part number of 1322121-S9S08AW16AE0MFT.

  • Category: Embedded Microcontrollers
  • Packaging: Bulk
  • Core Processor: S08
  • Speed: 40MHz
  • Standard Package: 1
  • Mounting: Surface
  • Connectivity: I2C, SCI, and SPI
  • Peripherals: LVD, POR, PWM, and WDT
  • I/O Ports: 38
  • Program Memory Size: 16KB
  • RAM Size: 1K x 8
  • Data Converters: A/D 8x10b
  • Oscillator Type: Internal
  • Supplier Device Package: 48-QFN-EP (7x7)
  • Operating Temperature Range: -40°C to 125°C
