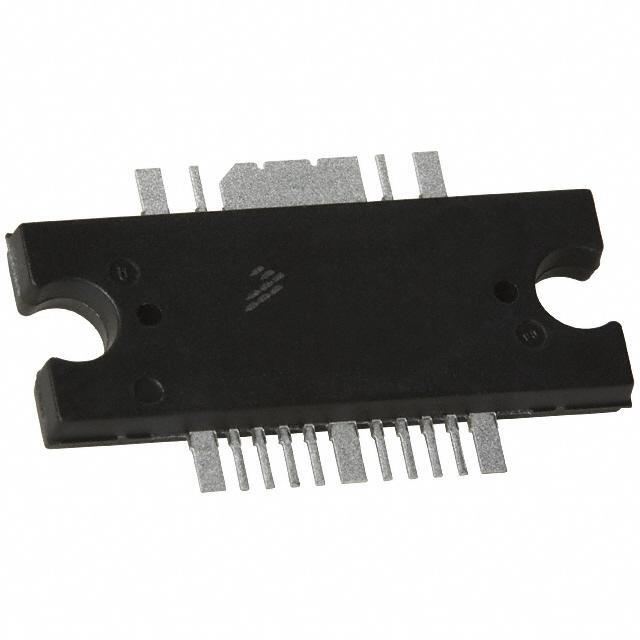

MW7IC2240NBR1 Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MW7IC2240NBR1

Part No MW7IC2240NBR1
Manufacturer Freescale Semiconductor - NXP
Catalog RF Amplifiers
Description IC PWR AMP RF 4W TO-272-16
Datasheet
MW7IC2240NBR1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 2.11GHz to 2.17GHz
P1dB 46dBm (40W)
Gain 30dB
RF Type W-CDMA
Supply Voltage - Operating 32V
Operating Supply Current 420mA
Test Frequency 2.14GHz
Case / Package TO-272 WB-16
Win Source Part Number 129598-MW7IC2240NBR1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MW7IC2240NBR1 CAD Model

Description

The NXP MW7IC2240NBR1 is an RF/IF and RFID electronic component that is designed for use in W-CDMA RF systems.

  • Supply and Demand Status: The MW7IC2240NBR1 is currently in a balance of supply and demand status.
  • Status: This obsolete (EOL) component
  • Case/Package: TO-272 WB-16
  • Frequency Range: operates @ a frequency range of 2.11GHz to 2.17GHz
  • Gain: 30dB
  • P1dB: 46dBm (40W)
