Same model may have multiple batches, images only for reference.

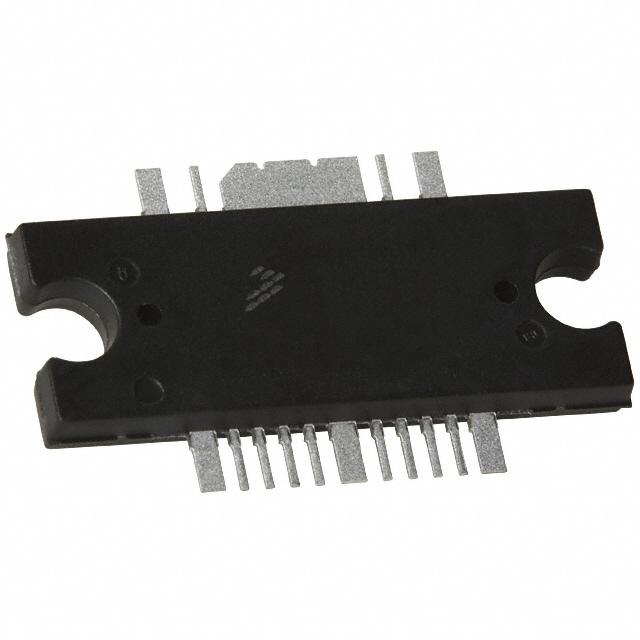

MW4IC2230NBR1 Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MW4IC2230NBR1

Part No MW4IC2230NBR1
Manufacturer Freescale Semiconductor - NXP
Catalog RF Amplifiers
Description IC PWR AMP RF 28V 30W TO272-16
Datasheet
MW4IC2230NBR1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 1.6GHz to 2.4GHz
Gain 31dB
RF Type Cellular, CDMA, EDGE, GSM, TDMA, W-CDMA
Supply Voltage - Operating 26V
Operating Supply Current 60mA
Case / Package TO-272 WB-16
Win Source Part Number 139117-MW4IC2230NBR1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MW4IC2230NBR1 CAD Model

Description

The NXP MW4IC2230NBR1 is a high-performance RF power amplifier designed for use in cellular, CDMA, EDGE, GSM, TDMA, and W-CDMA applications.

  • Frequency Range: 1.6GHz to 2.4GHz
  • Gain: 31dB
  • Package: TO-272 WB-16
  • Operating Voltage: 26V
  • Status: Obsolete (EOL)
