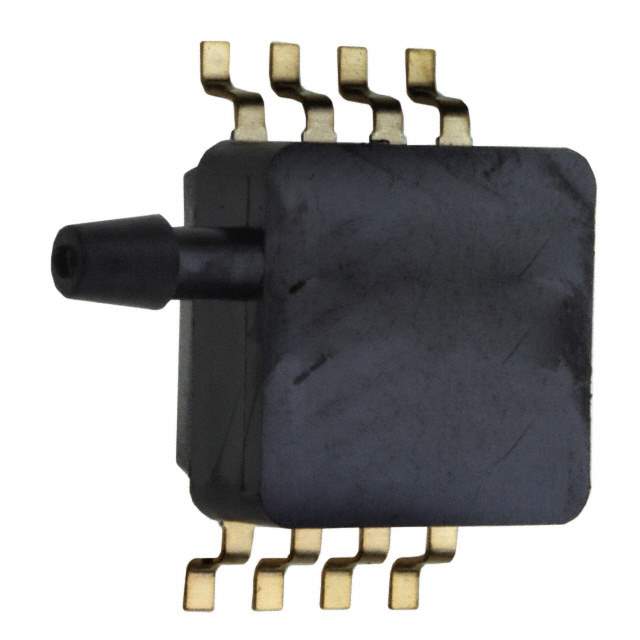

MPXV5050GP Freescale Semiconductor - NXP MPXV5050GP Real Image MPXV5050GP label picture MPXV5050GP real image3646
Same model may have multiple batches, images only for reference.
MPXV5050GP Freescale Semiconductor - NXP MPXV5050GP Real Image MPXV5050GP label picture MPXV5050GP real image3646
MPXV5050GP Freescale Semiconductor - NXP MPXV5050GP Real Image MPXV5050GP label picture MPXV5050GP real image3646
Same model may have multiple batches, images only for reference.

MPXV5050GP

Part No MPXV5050GP
Manufacturer Freescale Semiconductor - NXP
Catalog Pressure Sensors, Transducers
Description Pressure Sensor 0.2V to 4.7V 0kPa to 50kPa Gage 8-Pin SOP Tray / SENSOR GAUGE PRESS 7.25PSI MAX
Datasheet
MPXV5050GP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer NXP
Status Active
Pressure Type Vented Gauge
Operating Pressure 7.25 PSI (50 kPa)
Output Type Analog Voltage
Output 0.2 V to 4.7 V
Accuracy ±2.5%
Supply Voltage - Operating 4.75 V to 5.25 V
Port Size Male - 0.13" (3.17mm) Tube
Port Style Barbed
Features Temperature Compensated
Termination Style PCB
Maximum Pressure 29.01 PSI (200 kPa)
Temperature Range - Operating -40°C to 125°C
Case / Package 8-SOP
Win Source Part Number 085823-MPXV5050GP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name MPXV5050G
Introduction Date January 15, 2002
ECCN EAR99
Country of Origin Republic of Korea
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian MPXV5050GP CAD Model

Description

The NXP MPXV5050GP is a temperature compensated vented gauge pressure sensor that features an analog voltage output type.

  • Output Type: Analog voltage
  • Output Range: 0.2 V to 4.7 V
  • Operating Pressure: 7.25 PSI (50 kPa)
  • Application: Sensors and transducers
  • Temperature Range: -40°C to 125°C
  • Termination Style: PCB
  • Case / Package: 8-SOP
  • Operating Voltage: 4.75 V to 5.25 V
