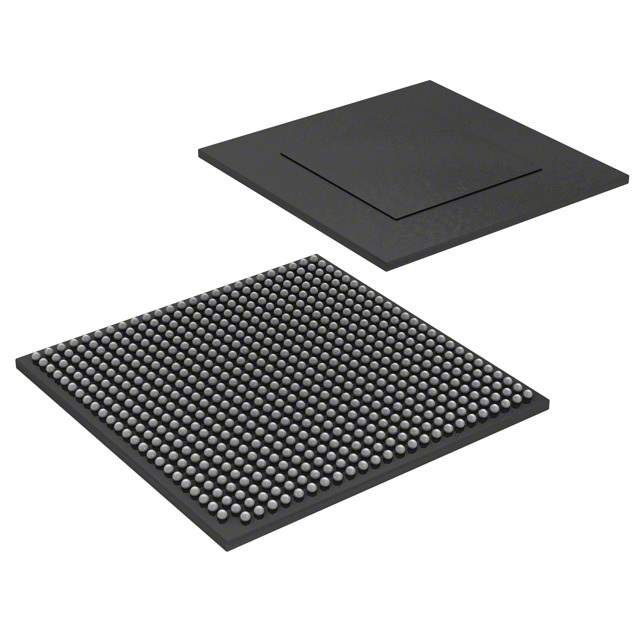

MCIMX6Q7CVT08AC Real Image
Same model may have multiple batches, images only for reference.

MCIMX6Q7CVT08AC

Part No MCIMX6Q7CVT08AC
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU I.MX6Q 800MHZ 624FCBGA
Datasheet
MCIMX6Q7CVT08AC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Not For New Designs
Core Processor ARM Cortex-A9
Number of Cores/Bus Width 4 Core, 32-Bit
Speed(Frequency) 800MHz
Co-Processors/DSP Multimedia; NEON SIMD
RAM Controllers LPDDR2, LVDDR3, DDR3
Graphics Acceleration Yes
Display & Interface Controllers Keypad, LCD
Ethernet 10/100/1000 Mbps (1)
SATA SATA 3Gbps (1)
USB USB 2.0 + PHY (4)
Voltage - I/O 1.8V, 2.5V, 2.8V, 3.3V
Temperature Range - Operating -40°C to 105°C (TA)
Security Features ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection
Case / Package 624-FCBGA (21x21)
Additional Interfaces CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART
Win Source Part Number 123563-MCIMX6Q7CVT08AC
Ultra Librarian 3D Model Ultra Librarian MCIMX6Q7CVT08AC CAD Model

Description

The NXP MCIMX6Q7CVT08AC is an integrated circuit (IC) that is designed for embedded microcontrollers.

  • Package: Tray
  • Core Processor: ARM Cortex-A9
  • Number of Cores/Bus Width: 4 core, 32-bit
  • Co-processors/DSP: multimedia and NEON SIMD
  • RAM Controllers: LPDDR2, LVDDR3, and DDR3
  • Graphics Acceleration: Yes
  • Display & Interface Controllers: keypad and LCD
  • Ethernet: 10/100/1000 Mbps (1)
  • SATA: SATA 3Gbps (1)
  • USB: USB 2.0 + PHY (4)
  • Voltage - I/O: 1.8V, 2.5V, 2.8V, 3.3V
  • Security Features: ARM TZ, boot security, cryptography, RTIC, secure fusebox, secure JTAG, secure memory, secure RTC, and tamper detection
  • Additional Interfaces: CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, and UART
  • Lifecycle Status: Not for new designs
  • Speed (frequency): 800MHz
