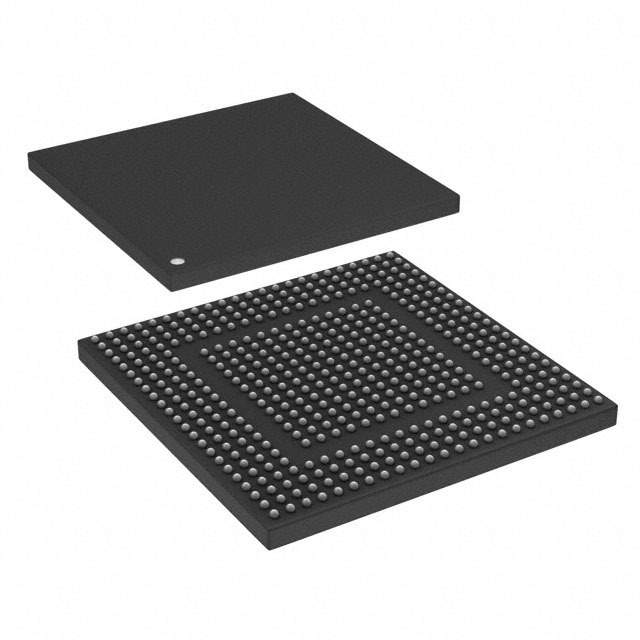

Same model may have multiple batches, images only for reference.
MCIMX27LMOP4A Real Image
Same model may have multiple batches, images only for reference.

MCIMX27LMOP4A

Part No MCIMX27LMOP4A
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description SOC i.MX21 ARM926EJ-S 0.09um 473-Pin MAP-BGA Tray / IC MPU I.MX27 400MHZ 473MAPBGA
Datasheet
MCIMX27LMOP4A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Not For New Designs
Core Processor ARM926EJ-S
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 400MHz
Co-Processors/DSP Security; SAHARAH2
RAM Controllers DDR
Graphics Acceleration Yes
Display & Interface Controllers Keypad, LCD
Ethernet 10/100 Mbps (1)
USB USB 2.0 + PHY (3)
Voltage - I/O 2.0V, 2.5V, 2.7V, 3.0V
Temperature Range - Operating -40°C to 85°C (TA)
Security Features Cryptography, Random Number Generator, RTIC, Secure Fusebox, Secure Memory
Additional Interfaces 1-Wire, AC97, I2C, I2S, IDE, MMC/SD, SPI, SSI, UART
Win Source Part Number 023011-MCIMX27LMOP4A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name MCIMX27
Introduction Date June 17, 2008
ECCN 3A991.a.2
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian MCIMX27LMOP4A CAD Model

Description

The NXP MCIMX27LMOP4A is a highly integrated system-on-chip (SoC) designed for embedded applications.

  • Core Processor: ARM926EJ-S
  • Bus Width: 32-bit
  • Frequency: 400MHz
  • Co-processors: Security
  • RAM Controllers: DDR
  • Graphics Acceleration: Yes
  • Display and Interface Controllers: Yes
  • Ethernet: Yes
  • USB: Yes
  • Additional Interfaces: I2C, SPI, UART
  • Temperature Range: -40°C to 85°C
  • Supply Voltage: 2.0V to 3.0V
