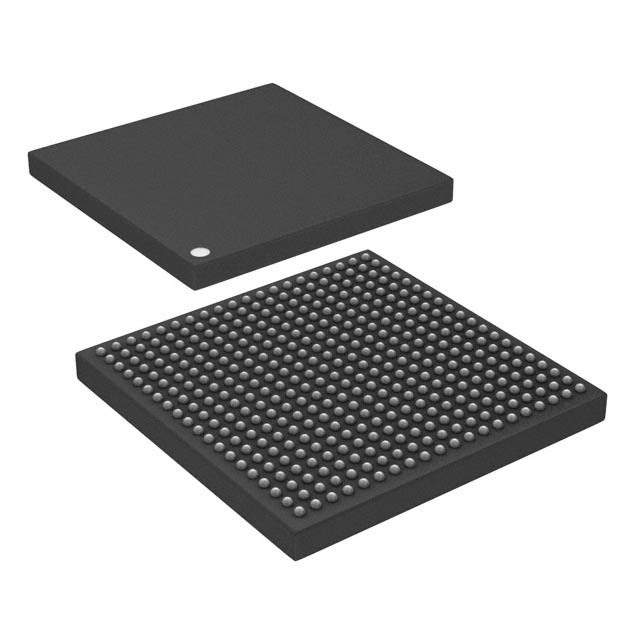

MCIMX253CJM4A Real Image
Same model may have multiple batches, images only for reference.

MCIMX253CJM4A

Part No MCIMX253CJM4A
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU I.MX25 400MHZ 400MAPBGA
Datasheet
MCIMX253CJM4A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor ARM926EJ-S
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 400MHz
RAM Controllers LPDDR, DDR, DDR2
Graphics Acceleration No
Display & Interface Controllers Keypad
Ethernet 10/100 Mbps (1)
USB USB 2.0 + PHY (2)
Voltage - I/O 2.0V, 2.5V, 2.7V, 3.0V, 3.3V
Temperature Range - Operating -40°C to 85°C (TA)
Security Package / Case 400-LFBGA
Case / Package 400-MAPBGA (17x17)
Additional Interfaces I2C, I2S, MMC/SD/SDIO, SPI, SSI, SSP, UART
Win Source Part Number 023010-MCIMX253CJM4A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MCIMX253CJM4A CAD Model

Description

The NXP 023010-MCIMX253CJM4A is a high-performance microprocessor based on the ARM926EJ-S core processor.

  • Core Processor: ARM926EJ-S
  • Core Count: 1
  • Bus Width: 32-bit
  • Speed: 400MHz
  • RAM Controllers: LPDDR, DDR, DDR2
  • Display and Interface Controller: Keypad
  • Ethernet Interface: 10/100 Mbps (1)
  • USB: 2.0 + PHY (2)
  • Voltage Range: 2.0V, 2.5V, 2.7V, 3.0V, 3.3V
  • Temperature Range: -40°C to 85°C (TA)
  • Package: 400-MAPBGA (17x17)
