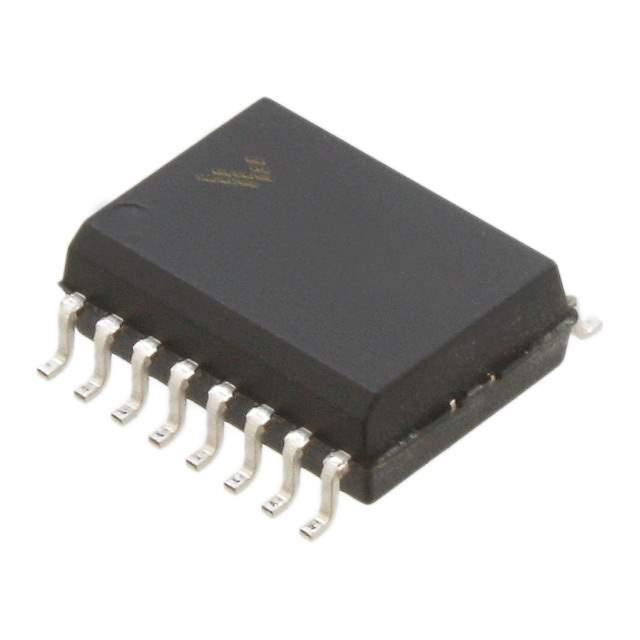

MCHC705KJ1CDWE Real Image
Same model may have multiple batches, images only for reference.

MCHC705KJ1CDWE

Part No MCHC705KJ1CDWE
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 1.2KB OTP 16SOIC
Datasheet
MCHC705KJ1CDWE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer NXP
Packaging Tube/Rail
Status Obsolete(EOL)
Core Processor HC05
Part Core Size 8-Bit
Speed(Frequency) 4MHz
Number of I/O 10
Program Memory Size 1.2KB (1.2K x 8)
Program Memory Type OTP
Data RAM Size 64 x 8
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 16-SOIC
Win Source Part Number 041548-MCHC705KJ1CDWE
Ultra Librarian 3D Model Ultra Librarian MCHC705KJ1CDWE CAD Model

Description

The NXP MCHC705KJ1CDWE is an integrated circuit featuring an HC05 core processor.

  • I/O ports: 10
  • Program memory size: 1.2KB
  • Program Memory Type: OTP
  • Part Core Size: 8-bit
  • Data RAM Size: 64 x 8
  • Supply Voltage Range: 3 V to 5.5 V
  • Frequency: 4MHz
  • Package: 16-SOIC
