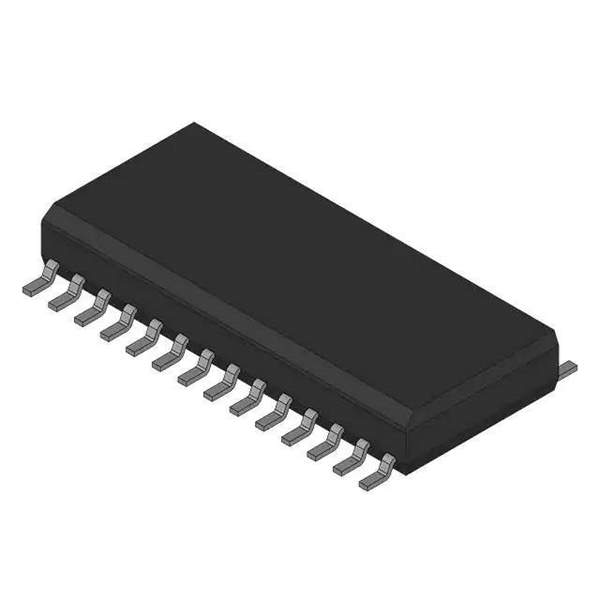

MC68HC705P6ECDW Real Image
Same model may have multiple batches, images only for reference.

MC68HC705P6ECDW

Part No MC68HC705P6ECDW
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description MICROCONTROLLER, 8-BIT, HC05 CPU
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Freescale Semiconductor - NXP
Series HC05
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor MC68HC05
Core Size 8-Bit
Speed 8MHz
Connectivity Serial Port
Peripherals LVR, POR, PWM, WDT
Number of I/O 20
Program Memory Size 4.5625KB (4.5625K x 8)
Program Memory Type ROM
RAM Size 176 x 8
Voltage - Supply (Vcc/Vdd) 2.97V ~ 5.5V
Data Converters A/D 4x8b
Oscillator Type External, Internal
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package 28-SOIC
Base Product Number MC68HC705
Standard Package 1 pcs
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 883542-MC68HC705P6ECDW
Ultra Librarian 3D Model Ultra Librarian MC68HC705P6ECDW CAD Model

Description

The 883542-MC68HC705P6ECDW is an embedded microcontroller integrated circuit (IC) from the HC05 series, manufactured by Freescale Semiconductor - NXP.

  • Core Processor: MC68HC05
  • Speed: 8MHz
  • Bit Size: 8-bit
  • I/O Pins: 20
  • Peripherals: LVR, POR, PWM, WDT
  • Program Memory Size: 4.5625KB
  • Program Memory Type: ROM
  • A/D Converters: Yes
  • Package: Bulk
  • Mounting Type: Surface Mount
  • Package/Case: 28-SOIC
  • Operating Temperature: 0°C to 70°C
