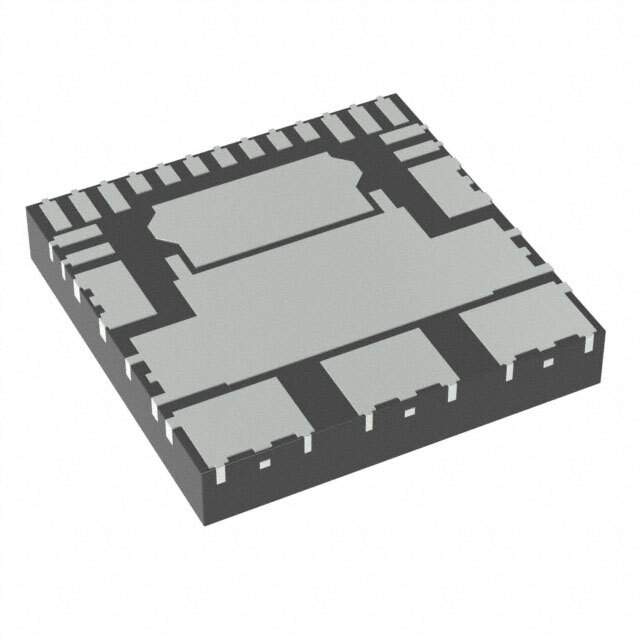

MC10XS3535PNA Real Image
Same model may have multiple batches, images only for reference.

MC10XS3535PNA

Part No MC10XS3535PNA
Manufacturer Freescale Semiconductor - NXP
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC SWITCH HIGHSIDE 24PQFN
Datasheet
MC10XS3535PNA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Obsolete(EOL)
Switch Type General Purpose
Number of Outputs 6
Output Type N-Channel
Voltage - Load 7 V to 20 V
Supply Voltage - Operating 3 V to 5.5 V
Rds On (Typ) 10 mOhm (Max), 35 mOhm (Max)
Features Watchdog Timer
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO
Temperature Range - Operating -40°C to 125°C (TA)
Case / Package 24-PQFN (12x12)
Win Source Part Number 113932-MC10XS3535PNA
Ultra Librarian 3D Model Ultra Librarian MC10XS3535PNA CAD Model

Description

The NXP MC10XS3535PNA is an integrated circuit designed for use in electronic applications.

  • Features: Watchdog timer, N-channel output type, and general purpose switch type
  • Fault Protection: Current limiting (fixed), open load detect, over temperature, and UVLO
  • Outputs: 6
  • Voltage Load: 7 V to 20 V
  • Temperature Range: -40°C to 125°C (TA)
  • Mounting: 24-PQFN (12x12) case/package
  • Supply Voltage: 3 V to 5.5 V
  • Status: Obsolete (EOL)
  • Category: Integrated Circuits
