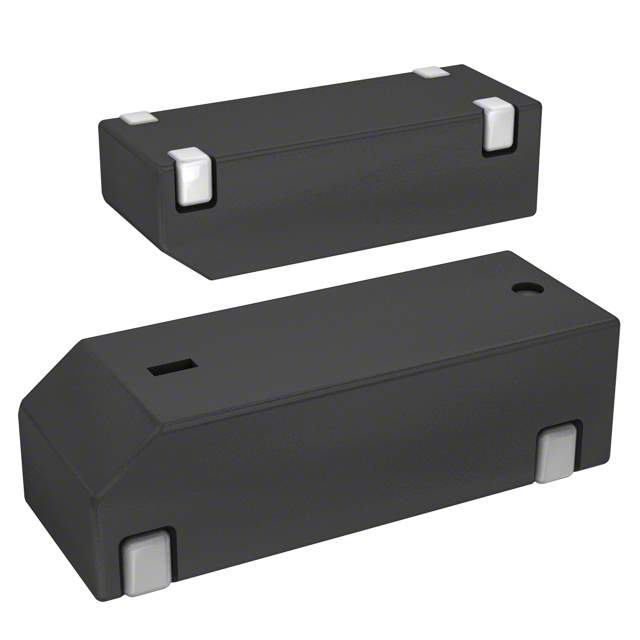

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Fox Electronics
Packaging Reel - TR
Status Obsolete(EOL)
Type MHz Crystal
Frequency 3.579545MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 18pF
ESR 200 Ohm
Operating Mode Fundamental
Temperature Range - Operating -10°C to 70°C
Mounting SMD (SMT)
Dimension 0.492" L x 0.181" W (12.50mm x 4.60mm)
Height - Seated (Max) 0.146" (3.70mm)
Win Source Part Number 1039530-FPXLF036S
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian FPXLF036S CAD Model

Description

The Fox Electronics FPXLF036S is an obsolete (EOL) MHz crystal component.

  • Manufacturer: Fox Electronics
  • Product: FPXLF036S
  • Status: Obsolete (EOL)
  • Type: MHz Crystal
  • Frequency: 3.579545 MHz
  • Frequency Tolerance: ±50ppm
  • Packaging: Reel - TR
  • Height Seated: 0.146" (3.70mm)
  • Mounting: SMD (SMT)
  • ESR: 200 Ohm
  • Load Capacitance: 18pF
  • Mode: Fundamental
  • Supply and Demand Status: Balanced
  • Temperature Range: -10°C to 70°C
  • Dimension: 0.492" L x 0.181" W (12.50mm x 4.60mm)
  • Package Quantity: 1k pcs
