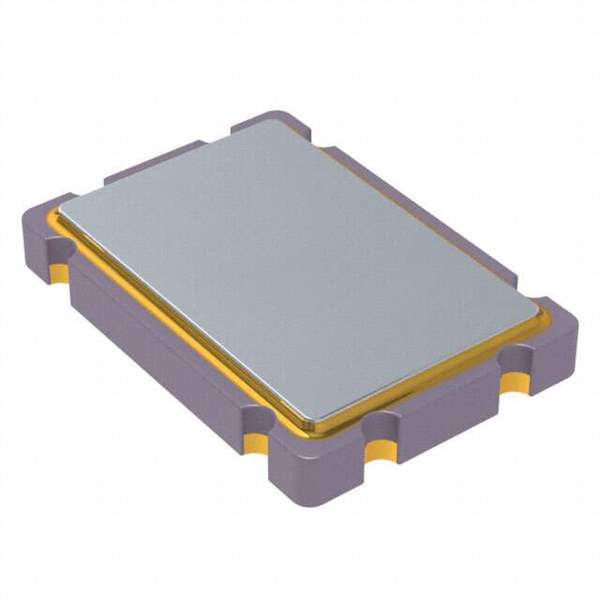

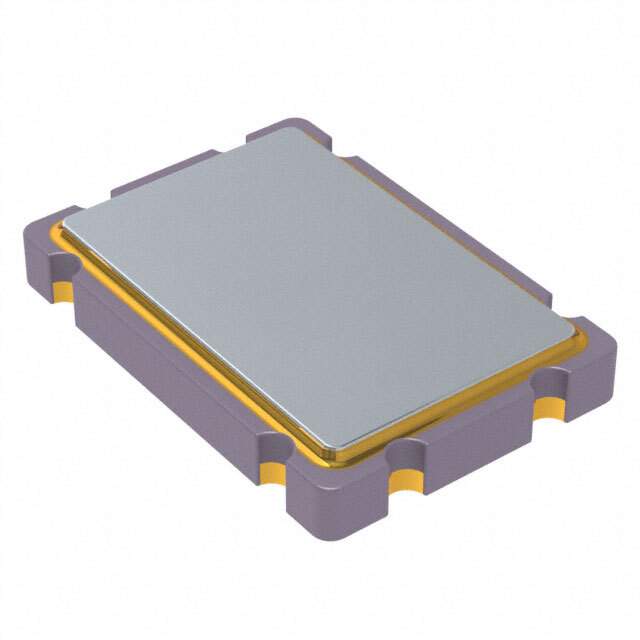

FC7BSCCMM6.0-T1 Real Image
Same model may have multiple batches, images only for reference.

FC7BSCCMM6.0-T1

Part No FC7BSCCMM6.0-T1
Manufacturer Fox Electronics
Catalog Crystals
Description CRYSTAL 6.0000MHZ 20PF SMD / 6 MHz ±30ppm Crystal 20pF 80 Ohms 4-SMD, No Lead
Datasheet
FC7BSCCMM6.0-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Fox Electronics
Series C7BS
Package Tape & Reel
Type MHz Crystal
Frequency 6 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.295" L x 0.205" W (7.50mm x 5.20mm)
Height - Seated (Max) 0.043" (1.10mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
California Prop 65 Warning Information
Win Source Part Number 1338746-FC7BSCCMM6.0-T1
Ultra Librarian 3D Model Ultra Librarian FC7BSCCMM6.0-T1 CAD Model

Description

The Fox Electronics FC7BSCCMM6.0-T1 is an electronic component that belongs to the Crystals, Oscillators, Resonators - Crystals category. It is a product of the C7BS series with a frequency of 6 MHz.

  • Frequency: 6 MHz
  • ESR (Equivalent Series Resistance): 80 Ohms
  • Frequency Stability: ±30ppm
  • Operating Mode: Fundamental
  • Load Capacitance: 20pF
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.295" L x 0.205" W (7.50mm x 5.20mm)
