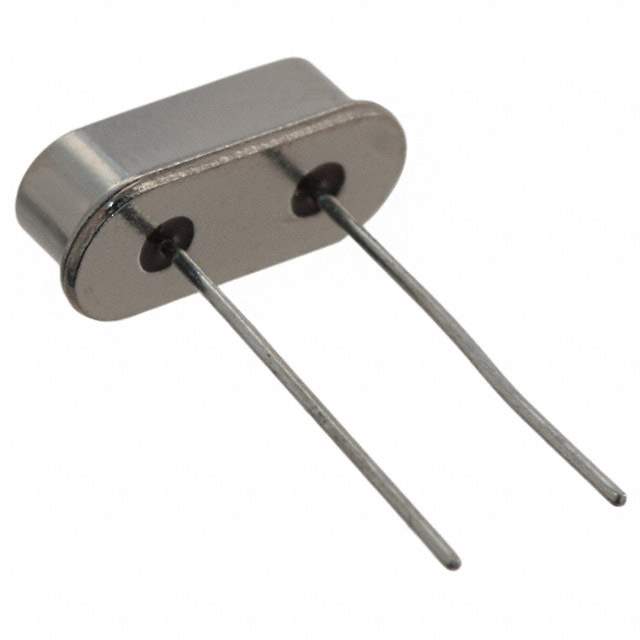

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Fox Electronics
Series HC49SLF
Package Bulk
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/US
Dimension 0.447" L x 0.183" W (11.35mm x 4.65mm)
Height - Seated (Max) 0.142" (3.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1314885-FC4STCBMF16.0
Ultra Librarian 3D Model Ultra Librarian FC4STCBMF16.0 CAD Model

Description

The Fox Electronics HC49SLF series MHz Crystal is a through-hole mounting type with a frequency of 16 MHz.

  • Mounting Type: Through-hole
  • Frequency: 16 MHz
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±50ppm
  • ESR (Equivalent Series Resistance): 40 Ohms
  • Load Capacitance: 20pF
  • Dimension: 0.447" L x 0.183" W (11.35mm x 4.65mm)
  • Seated Height: 0.142" (3.60mm)
  • Operating Temperature Range: -20°C to 70°C
