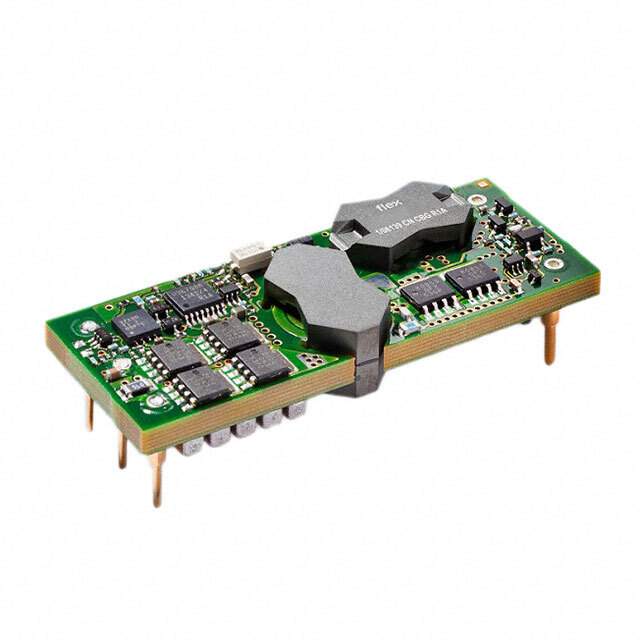

PKB4204PIHS Real Image
Same model may have multiple batches, images only for reference.

PKB4204PIHS

Part No PKB4204PIHS
Manufacturer Flex Power Modules
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 240W / Intermediate Bus Converter DC DC Converter 1 Output 12V 20A 40V - 75V Input
Datasheet
PKB4204PIHS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Flex Power Modules
Series PKB4204 (240W)
Package Tray
Type Intermediate Bus Converter
Number of Outputs 1
Voltage - Input (Min) 40V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 20A
Power (Watts) 240 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Adjustable Output, Baseplate, Remote On/Off
Temperature Range - Operating -30°C ~ 90°C (With Derating)
Efficiency 95.5%
Mounting Type Through Hole
Package / Case Eighth Brick
Dimension 2.30" L x 0.89" W x 0.50" H (58.4mm x 22.7mm x 12.7mm)
Supplier Device Package Eighth Brick
Control Features Enable, Active Low
Approval Agency CB, CSA, IEC, TUV, UL
Standard Number 62368-1
Base Product Number PKB420
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2166-PKB4204PIHS
Standard Package 75
Win Source Part Number 1221039-PKB4204PIHS
Ultra Librarian 3D Model Ultra Librarian PKB4204PIHS CAD Model

Description

The PKB4204PIHS is a power supply component available from Win Source with part number 1221039-PKB4204PIHS.

  • Win Source Part Number: 1221039-PKB4204PIHS
  • Series: PKB4204 (240W)
  • Type: Intermediate Bus Converter
  • Features: Adjustable Output, Baseplate, Remote On/Off
  • Application: ITE (Commercial)
  • Standard Package: 75
  • Power Output: 240 W
  • Efficiency: 95.5%
  • Voltage Isolation: 1.5 kV
  • Current Output: 20A
  • Voltage Input: 40V to 75V
  • Voltage Output: 12V
  • Mounting: Through-Hole
  • Package/Case: Eighth Brick
  • Manufacturer: Flex Power Modules
  • Approvals: CB, CSA, IEC, TUV, UL
  • Standard: 62368-1
