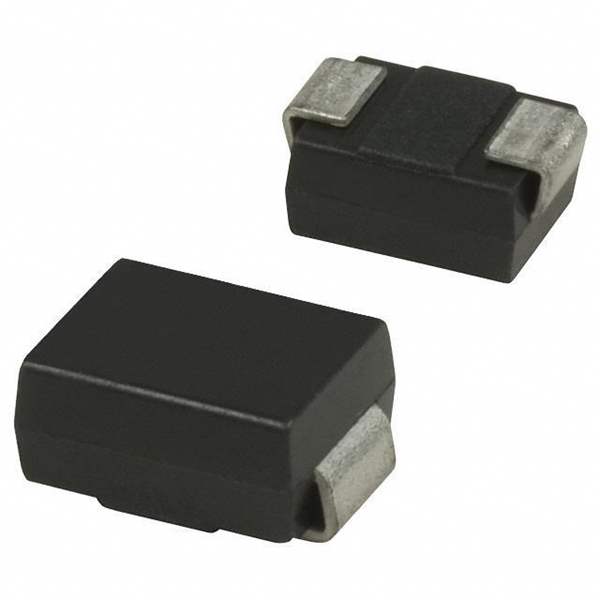

SMBJ15CA Fairchild/ON Semiconductor SMBJ15CA real image SMBJ15CA real image5591
Same model may have multiple batches, images only for reference.

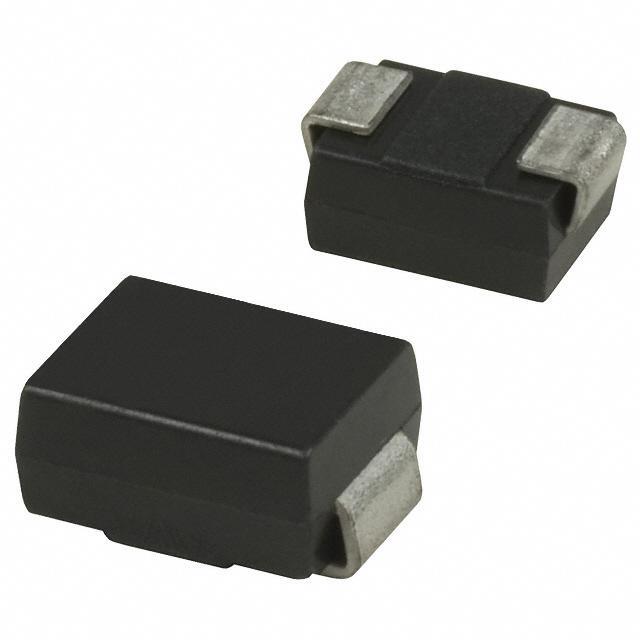

SMBJ15CA

Part No SMBJ15CA
Manufacturer Fairchild/ON Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 15VWM 24.4VC SMB
Datasheet
SMBJ15CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 15V
Minimum Breakdown Voltage 16.7V
Max Clamping Voltage 24.4V
Peak Pulse Current(Ippm) 24.6A
Power Dissipation - Pd 600W
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DO-214AA (SMB)
Win Source Part Number 029157-SMBJ15CA
Family Name SMBJ15CA
Introduction Date August 01, 2008
ECCN EAR99
Country of Origin China
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Communications & Networking, Computers & Computer Peripherals, Imaging, Video & Vision, Industrial
Quantity per package 3k pcs
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Voltage - Reverse Standoff (Typ) 15V
Voltage - Breakdown (Min) 16.7V
Voltage - Clamping (Max) @ Ipp 24.4V
Current - Peak Pulse (10/1000µs) 24A
Power - Peak Pulse 600W
Power Line Protection No
Operating Temperature -55°C ~ 150°C (TJ)
Grade -
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Package Cut Tape (CT)
Current - Peak Pulse (10/1000µs) 24.6A
Ultra Librarian 3D Model Ultra Librarian SMBJ15CA CAD Model

Description

The Fairchild/ON Semiconductor SMBJ15CA is an SMD (SMT) zener diode used in general purpose applications with a stand-off voltage (Vwm) of 15V and minimum breakdown voltage of 16.7V.

  • Stand-off Voltage (Vwm): 15V
  • Minimum Breakdown Voltage: 16.7V
  • Max Clamping Voltage: 24.4V
  • Peak Pulse Current(Ippm): 24.6A
  • Power Dissipation - Pd: 600W
  • Supply and Demand Status: sufficient
  • Introduction Date: August 01, 2008
  • Estimated EOL Date: 2024
  • Temperature Range: -55°C to 150°C (TJ)
  • Package: DO-214AA (SMB)
  • Applications: communications & networking, computers & computer peripherals, imaging, video & vision, and industrial applications
  • Quantity per Package: 3k pcs
