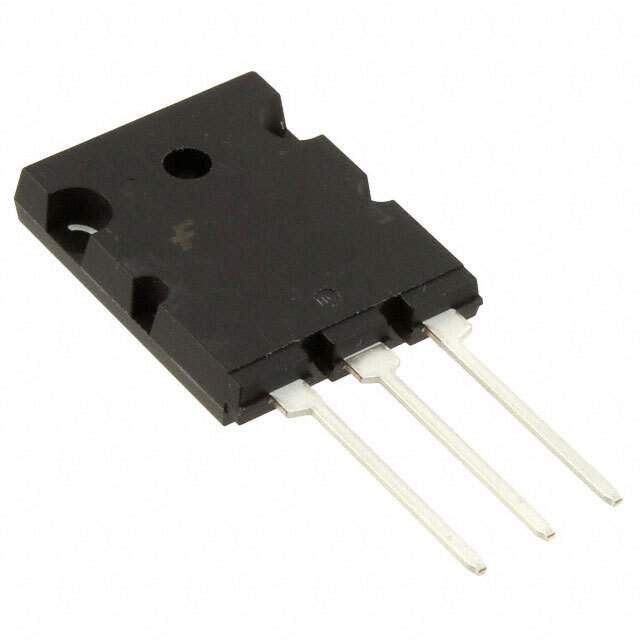

SGL160N60UFD Real Image
Same model may have multiple batches, images only for reference.

SGL160N60UFD

Part No SGL160N60UFD
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT 600V 160A 250W TO264
Datasheet
SGL160N60UFD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Not For New Designs
VCEO Maximum Collector-Emitter Breakdown Voltage 600V
Maximum Current Collector 160A
Pulsed Collector Current 300A
Collector-emitter saturation voltage(Max) 2.6V @ 15V, 80A
Maximum Power Dissipation 250W
Total Switching Energy(Ets) 2.5mJ (on), 1.76mJ (off)
Input Type Standard
Gate Charge 345nC
Turn-on and Turn-off delay time 40ns/90ns
Testing Conditions 300V, 80A, 3.9 Ohm, 15V
Reverse Recovery Time (trr) 95ns
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-264
Win Source Part Number 042580-SGL160N60UFD
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SGL160N60UFD
Introduction Date October 16, 2000
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian SGL160N60UFD CAD Model

Description

The Fairchild/ON Semiconductor SGL160N60UFD is a high-power IGBT transistor that is used in a variety of electronic devices.

  • Popularity: High
  • Supply and Demand Status: Balance
  • Manufacturer: Fairchild/ON Semiconductor
  • Maximum Collector-Emitter Breakdown Voltage: 600V
  • Maximum Current Collector: 160A
  • Maximum Power Dissipation: 250W
