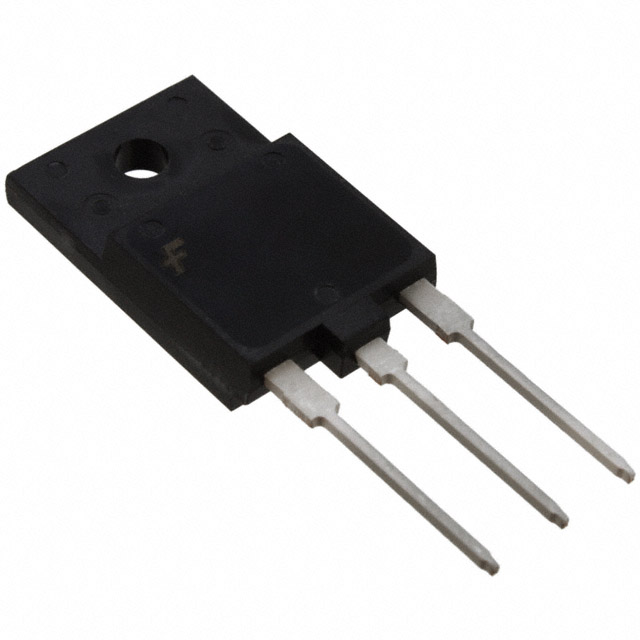

SGF23N60UFTU Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

SGF23N60UFTU

Part No SGF23N60UFTU
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT 600V 23A 75W TO3PF
Datasheet
SGF23N60UFTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 600V
Maximum Current Collector 23A
Pulsed Collector Current 92A
Collector-emitter saturation voltage(Max) 2.6V @ 15V, 12A
Maximum Power Dissipation 75W
Total Switching Energy(Ets) 115μJ (on), 135μJ (off)
Input Type Standard
Turn-on and Turn-off delay time 17ns/60ns
Testing Conditions 300V, 12A, 23 Ohm, 15V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-3PF
Win Source Part Number 042578-SGF23N60UFTU
Popularity Medium
Supply and Demand Status Limited
Quantity per package 360
Ultra Librarian 3D Model Ultra Librarian SGF23N60UFTU CAD Model

Description

The Fairchild/ON Semiconductor SGF23N60UFTU is an active electronic component used in discrete semiconductor products.

  • Component Type: IGBT
  • Collector-Emitter Breakdown Voltage: 600V
  • Maximum Current Collector: 23A
  • Packaging: Tube/Rail
  • Mounting Type: Through Hole
  • Manufacturer: Fairchild/ON Semiconductor
  • Win Source Part Number: 042578-SGF23N60UFTU
