Same model may have multiple batches, images only for reference.

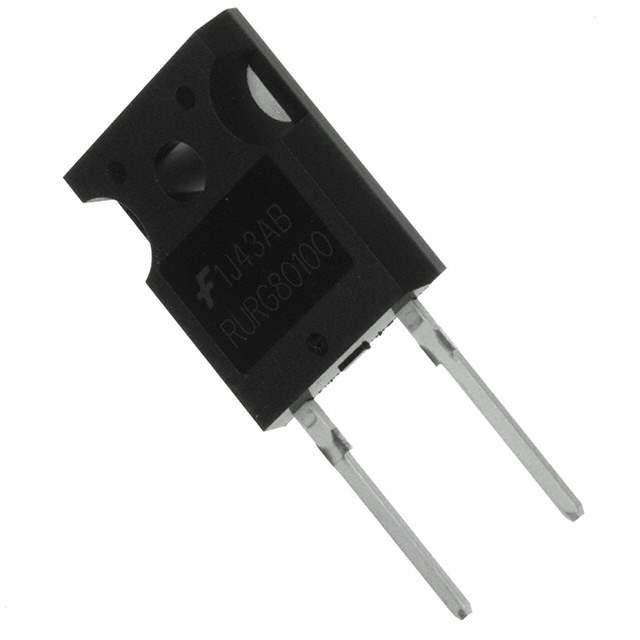

RURG80100 Real Image
Same model may have multiple batches, images only for reference.

RURG80100

Part No RURG80100
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description 80A, 1000V Ultrafast Diode
Datasheet
RURG80100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 1000V
Current - Average Rectified (Io) 80A
Voltage - Forward (Vf) (Maximum) @ If 1.9V @ 80A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 200ns
Current - Reverse Leakage @ Vr 250μA @ 1000V
Mounting Style Through Hole
Package TO-247-2
Manufacturer Package TO-247-2
Operating Temperature - Junction -65°C ~ 175°C
Win Source Part Number 1244730-RURG80100
Manufacturer Homepage www.fairchildsemi.com
Family Name RURG80100
Introduction Date January 15, 2002
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Popularity Medium
Supply and Demand Status Limited
Quantity per package 30
Ultra Librarian 3D Model Ultra Librarian RURG80100 CAD Model

Description

The RURG80100 diode from Fairchild/ON Semiconductor is a fast recovery diode with a current rating of 80A and a voltage rating of 1000V.

  • Current Rating: 80A
  • Voltage Rating: 1000V
  • Reverse Recovery Time: 200ns
  • Forward Voltage Drop: 1.9V @ 80A
  • Mounting Type: Through-Hole
  • Package: TO-247-2
  • Applications: power supplies and motor control circuits
  • Halogen-Free: Yes
  • Supply and Demand: Limited
  • Quantity per Package: 30
