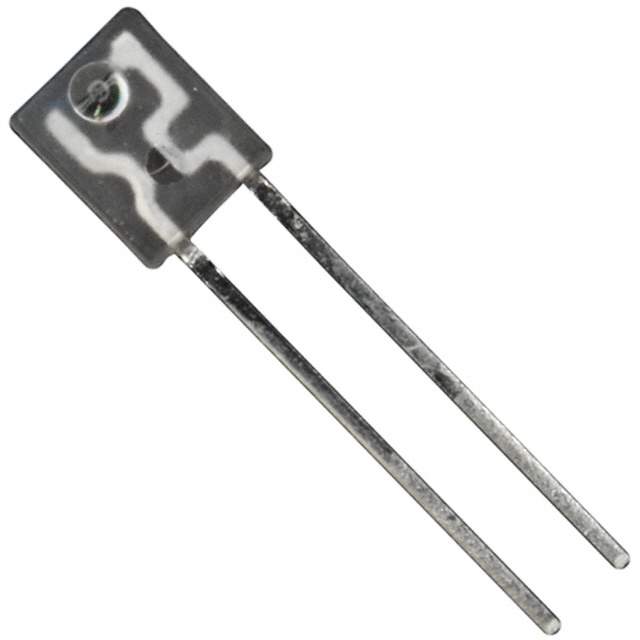

QSE214C Real Image
Same model may have multiple batches, images only for reference.

QSE214C

Part No QSE214C
Manufacturer Fairchild/ON Semiconductor
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANS IR 880NM SIDE LOOK
Datasheet
QSE214C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Fairchild/ON Semiconductor
Status Obsolete(EOL)
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Current - Dark (Id) (Max) 100nA
Wavelength 880nm
Viewing Angle 50°
Maximum Power Dissipation 100mW
Mounting Through Hole
Orientation Side View
Temperature Range - Operating -40°C to 100°C (TA)
Dimension Radial
Win Source Part Number 210464-QSE214C
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian QSE214C CAD Model

Description

The Fairchild/ON Semiconductor QSE214C is a side-view infrared (IR) emitting diode designed for sensor and transducer applications.

  • Wavelength: 880nm
  • Viewing Angle: 50 degrees
  • Maximum Current Collector: -
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 30V
  • Maximum Power Dissipation: 100mW
  • Package: Radial package
  • Popularity: Medium
  • Usage: Industrial applications for sensing purposes
