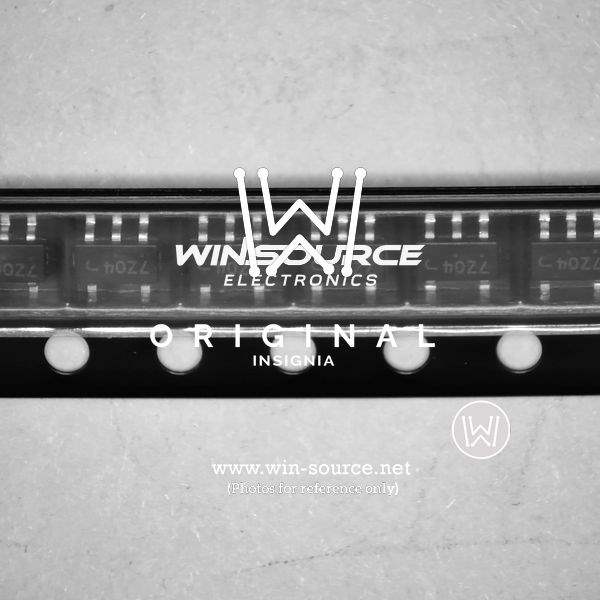

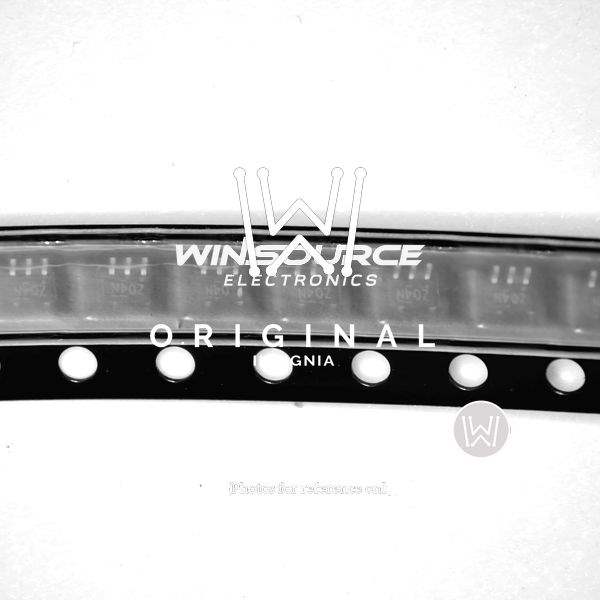

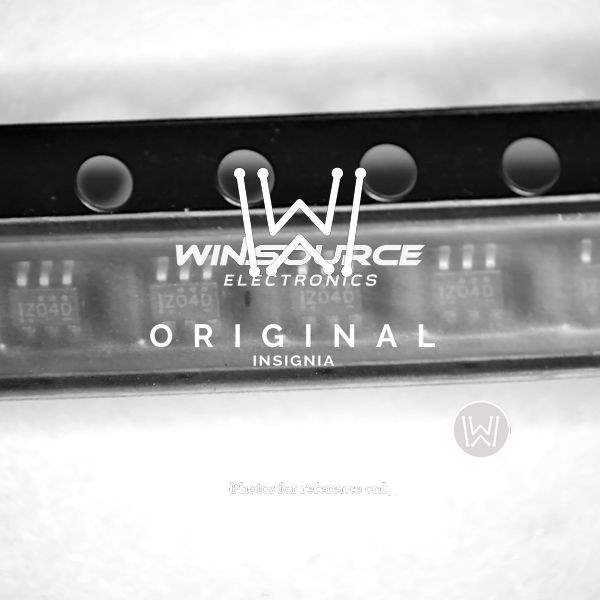

NC7WZ04P6X Real Image NC7WZ04P6X real image3913 NC7WZ04P6X Real Image1 NC7WZ04P6X Real Image2 NC7WZ04P6X Real Image3 NC7WZ04P6X Real Image4 NC7WZ04P6X Real Image5 NC7WZ04P6X Real Image6 NC7WZ04P6X Real Image7
Same model may have multiple batches, images only for reference.
NC7WZ04P6X Real Image NC7WZ04P6X real image3913 NC7WZ04P6X Real Image1 NC7WZ04P6X Real Image2 NC7WZ04P6X Real Image3 NC7WZ04P6X Real Image4 NC7WZ04P6X Real Image5 NC7WZ04P6X Real Image6 NC7WZ04P6X Real Image7
NC7WZ04P6X Real Image NC7WZ04P6X real image3913 NC7WZ04P6X Real Image1 NC7WZ04P6X Real Image2 NC7WZ04P6X Real Image3 NC7WZ04P6X Real Image4 NC7WZ04P6X Real Image5 NC7WZ04P6X Real Image6 NC7WZ04P6X Real Image7
Same model may have multiple batches, images only for reference.

NC7WZ04P6X

Part No NC7WZ04P6X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC INVERTER UHS DUAL HS SC70-6
Datasheet
NC7WZ04P6X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type Inverter
Number of Circuits 2
Number of Inputs 2
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 32mA, 32mA
Max Propagation Delay @ V, Max CL 3.6ns @ 5V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SC-70-6
Dimension 6-TSSOP, SC-88, SOT-363
Win Source Part Number 024865-NC7WZ04P6X
Family Name NC7WZ04
Introduction Date July 25, 2000
ECCN EAR99
Country of Origin China, Philippines
Halogen Free Compliant
Estimated EOL Date 2025
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial
Quantity per package 3k pcs

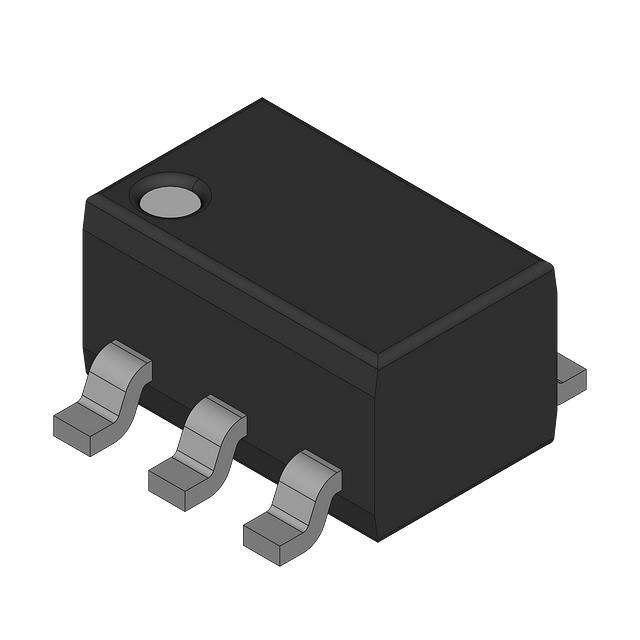

Ultra Librarian 3D Model Ultra Librarian NC7WZ04P6X CAD Model

Description

The Fairchild/ON Semiconductor NC7WZ04P6X is a high-popularity integrated circuit inverter with a sufficient supply and demand status in the open market.

  • Circuits: 2
  • Logic Type: Inverter
  • Inputs: 2
  • Maximum Propagation Delay: 3.6ns @ 5V and 50pF
  • Current Output (High/Low): 32mA, 32mA
  • Current Quiescent: 1μA
  • Package: SC-70-6 (6-TSSOP, SC-88, SOT-363)
  • Introduction Date: July 25, 2000
  • Estimated EOL Date: 2025
  • Halogen-Free: Compliant
  • ECCN: EAR99
  • Alternative Parts: PI74STX2G04CX, PI74STX2G04CEX, and SN74LVC2G04DCKTE4
