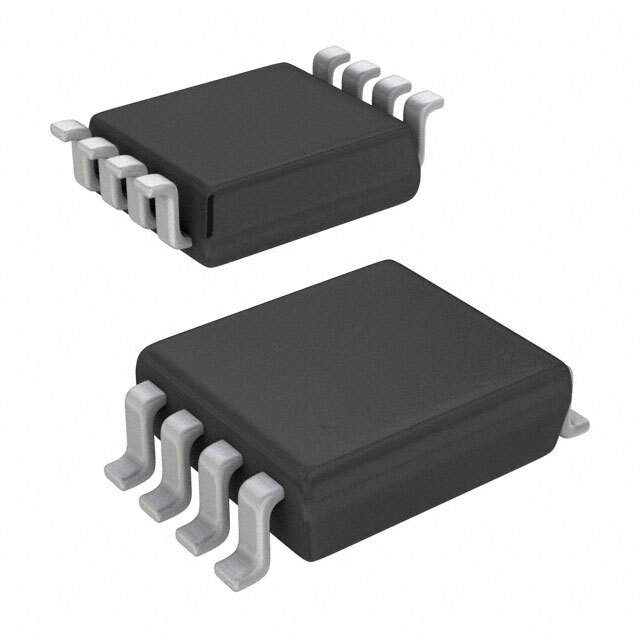

NC7WZ02K8X Real Image
Same model may have multiple batches, images only for reference.

NC7WZ02K8X

Part No NC7WZ02K8X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC GATE NOR 2CH 2-INP US8
Datasheet
NC7WZ02K8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type NOR Gate
Number of Circuits 2
Number of Inputs 2
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 32mA, 32mA
Max Propagation Delay @ V, Max CL 3.7ns @ 5V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package US8
Dimension 8-VFSOP (0.091", 2.30mm Width)
Win Source Part Number 1081826-NC7WZ02K8X
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian NC7WZ02K8X CAD Model

Description

The NC7WZ02K8X is a NOR gate integrated circuit manufactured by Fairchild/ON Semiconductor. It is an active product with a supply voltage operating range of 1.65 V to 5.5 V.

  • Supply Voltage: 1.65 V to 5.5 V
  • Case/Package: US8
  • Maximum Propagation Delay: 3.7ns
  • Current Quiescent: 1μA
