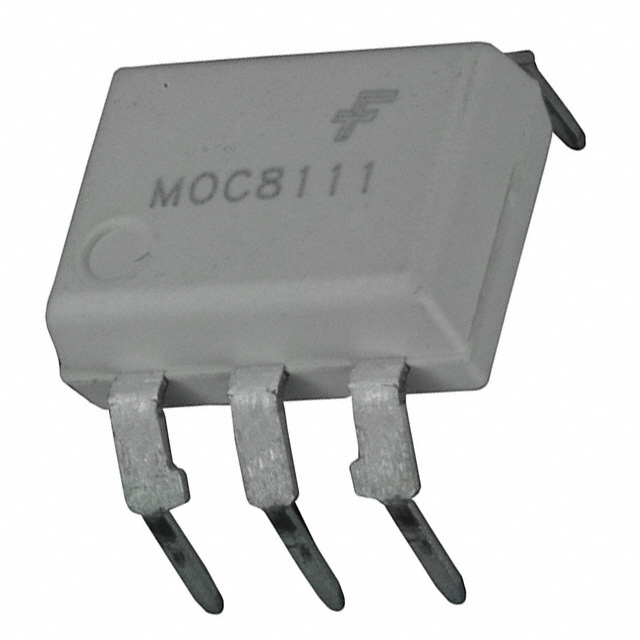

MOC8111TM Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

MOC8111TM

Part No MOC8111TM
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description 6-Pin DIP Optocoupler for Power Supply Applications (No Base Connection)
Datasheet
MOC8111TM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
Part Status Obsolete(EOL)
Number of Channels 1
Voltage - Isolation 7500Vpk
Current Transfer Ratio (Minimum) 20% @ 10mA
Turn On / Turn Off Time (Typ) 3μs, 18μs
Rise / Fall Time (Typ) 2μs, 11μs
Input Type DC
Output Type Transistor
Output Voltage MAX 70V
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Maximum) 90mA
Vce Saturation (Maximum) 400mV
Operating Temperature Range -40°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.400", 10.16mm)
Manufacturer Package 6-DIP
Win Source Part Number 1225862-MOC8111TM
Manufacturer Homepage www.fairchildsemi.com
Family Name MOC8111M
Introduction Date September 01, 2007
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MOC8111TM CAD Model

Description

The MOC8111TM is a single channel transistor output optocoupler in 6-DIP package, manufactured by Fairchild/ON Semiconductor.

  • Isolation: 7500Vpk
  • Output: Transistor
  • Maximum Output Voltage: 70V
  • Current Transfer Ratio: 20% @ 10mA
  • Rise/Fall Time: 2μs/11μs
  • Turn On/Turn Off Time: 3μs/18μs
  • Compliance: Halogen-Free
  • Popularity: Medium
