Same model may have multiple batches, images only for reference.

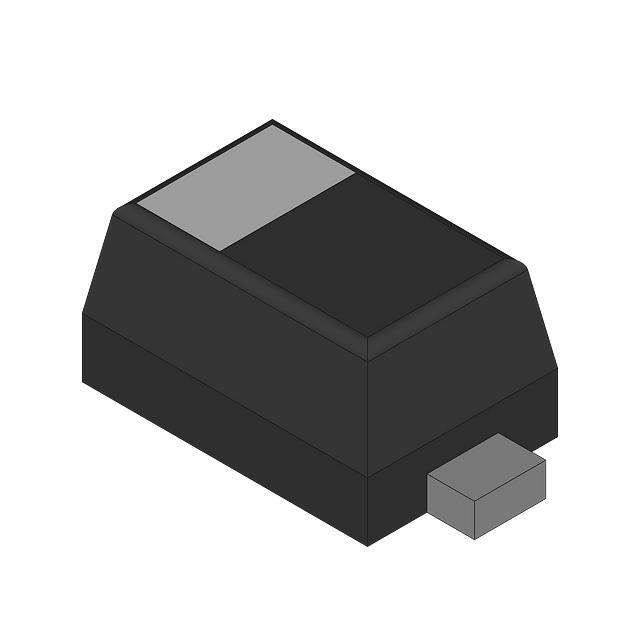

MM5Z12V Real Image
Same model may have multiple batches, images only for reference.

MM5Z12V

Part No MM5Z12V
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 12V 200MW SOD523
Datasheet
MM5Z12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 12V
Tolerance ±5%
Maximum Power Dissipation 200mW
Impedance (Max) (Zzt) 25 Ohm
Current - Reverse Leakage @ Vr 100nA @ 8V
Voltage - Forward (Vf) (Max) @ If 900mV @ 10mA
Temperature Range - Operating -65°C to 150°C
Mounting SMD (SMT)
Case / Package SOD-523
Win Source Part Number 059036-MM5Z12V
Ultra Librarian 3D Model Ultra Librarian MM5Z12V CAD Model

Description

The MM5Z12V is a 12V Zener diode with a tolerance of ±5% and is manufactured by ON Semiconductor.

  • Voltage: 12V
  • Tolerance: ±5%
  • Maximum Forward Voltage: 900mV @ 10mA
  • Reverse Leakage Current: 100nA @ 8V
  • Impedance: 25 Ohm
  • Maximum Power Dissipation: 200mW
  • Package: SOD-523
  • Product Type: Discrete Semiconductor
  • Manufacturer: ON Semiconductor
