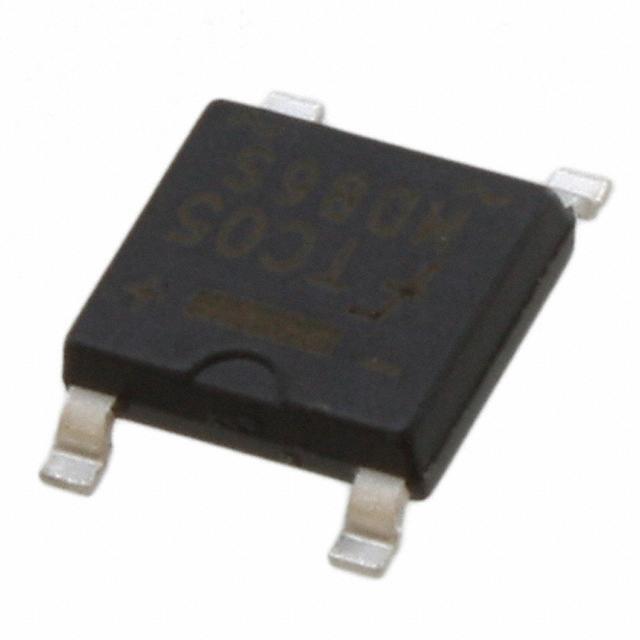

MDB6S Fairchild/ON Semiconductor MDB6S Real Image MDB6S real image MDB6S Real Image
Same model may have multiple batches, images only for reference.
MDB6S Fairchild/ON Semiconductor MDB6S Real Image MDB6S real image MDB6S Real Image
MDB6S Fairchild/ON Semiconductor MDB6S Real Image MDB6S real image MDB6S Real Image
Same model may have multiple batches, images only for reference.

MDB6S

Part No MDB6S
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description IC BRIDGE DIODE 600V 4-MICRODIP
Datasheet
MDB6S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 10μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 4-MicroDIP/SMD
Win Source Part Number 1075740-MDB6S
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian MDB6S CAD Model

Description

The Fairchild/ON Semiconductor 1075740-MDB6S is a single-phase diode.

  • Average Rectified Current: 1A
  • Maximum Peak Reverse Voltage: 600V
  • Voltage Forward: 1.1V @ 1A
  • Current Reverse Leakage: 10μA @ 600V
  • Mounting Style: Surface Mount Device (SMD)
  • Case/Package: 4-MicroDIP/SMD
  • Packaging: Reel
  • Technology: Standard
  • Category: Discrete Semiconductor Product
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Quantity per Package: 4k pcs
