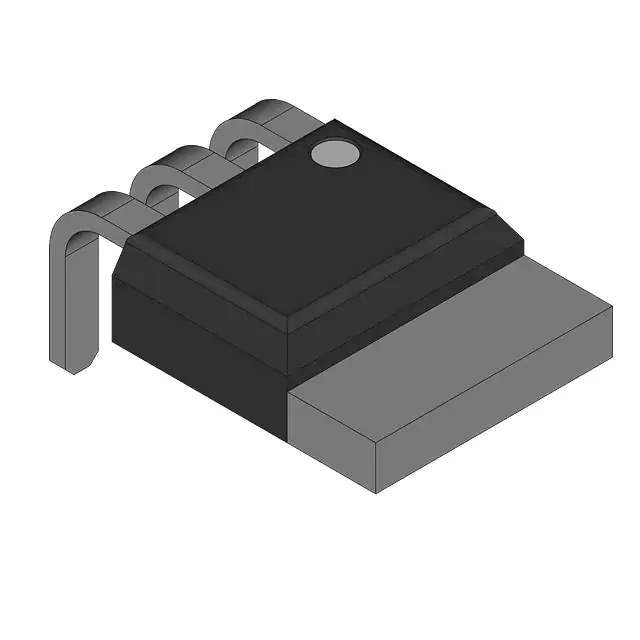

ISL9R1560S2 Real Image
Same model may have multiple batches, images only for reference.

ISL9R1560S2

Part No ISL9R1560S2
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE AVALANCHE 600V 15A I2PAK
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Fairchild/ON Semiconductor
Series Stealth™
Package Bulk
Product Status Obsolete
Technology Avalanche
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 2.2 V @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 40 ns
Current - Reverse Leakage @ Vr 100 µA @ 600 V
Mounting Type Through Hole
Package / Case TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package I2PAK (TO-262)
Operating Temperature - Junction -55°C ~ 175°C
Standard Package 81 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 164557-ISL9R1560S2
Ultra Librarian 3D Model Ultra Librarian ISL9R1560S2 CAD Model

Description

The 164557-ISL9R1560S2 is a single diode in the Diodes - Rectifiers - Single Diodes category.

  • Diode Category: Diodes - Rectifiers - Single Diodes
  • Diode Type: Fast Recovery
  • Speed: less than 500ns
  • Current Rating: greater than 200mA
  • Maximum DC reverse voltage: 600V
  • Average rectified current: 15A
  • Forward voltage drop: 2.2V @ 15A
  • Reverse recovery time: 40ns
  • Reverse leakage current: 100µA @ maximum reverse voltage
  • Mounting type: Through hole
  • Package: TO-262-3 Long Leads, I²Pak, TO-262AA
  • Supplier Device Package: I2PAK (TO-262)
  • Operating temperature range: -55°C to 175°C
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited)
