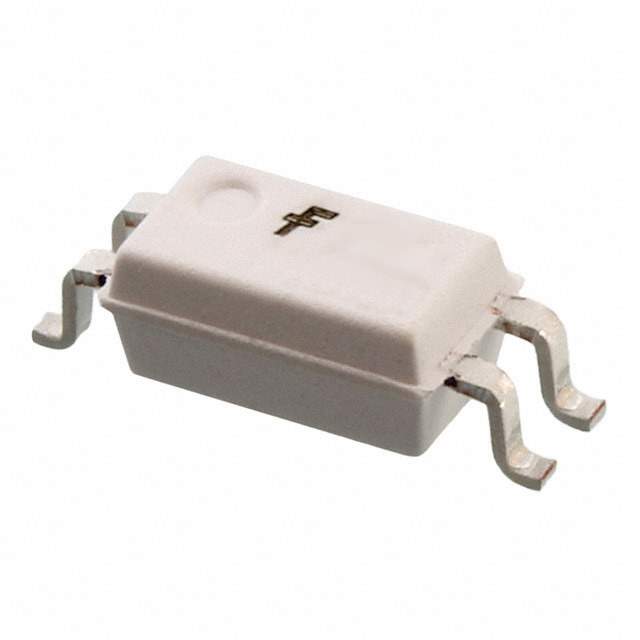

HMHA2801AR1 Real Image
Same model may have multiple batches, images only for reference.

HMHA2801AR1

Part No HMHA2801AR1
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANS 4-MINI-FLAT
Datasheet
HMHA2801AR1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 80% @ 5mA
Maximum DC Current Transfer Ratio 160% @ 5mA
Rise and Fall Time 3μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.3V (Max)
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 1043862-HMHA2801AR1
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian HMHA2801AR1 CAD Model

Description

The HMHA2801AR1 is a single channel optocoupler designed for isolation applications, manufactured by Fairchild/ON Semiconductor.

  • Forward Voltage (Max): 1.3V
  • Isolation Voltage: 3750Vrms
  • Mounting: SMD (SMT)
  • Temperature Range: -55°C to 100°C
  • DC Current Transfer Ratio (Min): 80% @ 5mA
  • DC Current Transfer Ratio (Max): 160% @ 5mA
  • Status: Obsolete(EOL)
  • Supply and Demand: Balanced
