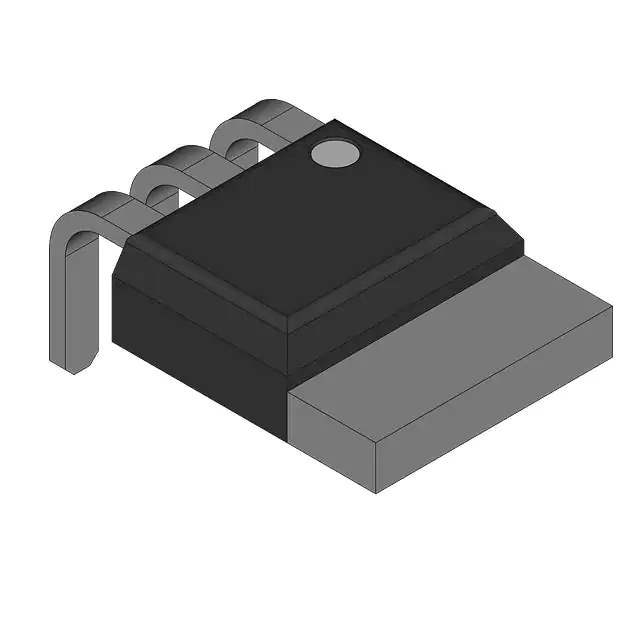

HGT1S7N60C3D Real Image
Same model may have multiple batches, images only for reference.

HGT1S7N60C3D

Part No HGT1S7N60C3D
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT, 14A, 600V, N-CHANNEL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr Fairchild/ON Semiconductor
Package Bulk
Product Status Active
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 14 A
Current - Collector Pulsed (Icm) 56 A
Vce(on) (Max) @ Vge, Ic 2V @ 15V, 7A
Power - Max 60 W
Input Type Standard
Gate Charge 38 nC
Reverse Recovery Time (trr) 25 ns
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package I2PAK (TO-262)
Standard Package 307 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 597659-HGT1S7N60C3D
Ultra Librarian 3D Model Ultra Librarian HGT1S7N60C3D CAD Model

Description

The 597659-HGT1S7N60C3D is a single IGBT transistor used in discrete semiconductor products.

  • Maximum Power: 60 W
  • Maximum Collector Current: 14 A
  • Voltage Breakdown: 600 V (Collector to Emitter)
  • Gate Voltage: 15 V
  • Collector Current: 7 A
  • Maximum Vce(on): 2 V (Collector-Emitter Saturation Voltage)
  • Input: Standard
  • Gate Charge: 38 nC
  • Mounting: Through Hole
  • Package: TO-262-3 Long Leads, I²Pak, TO-262AA
  • Operating Temperature: -40°C to 150°C
  • Status: Active
  • Manufacturer: Fairchild/ON Semiconductor
