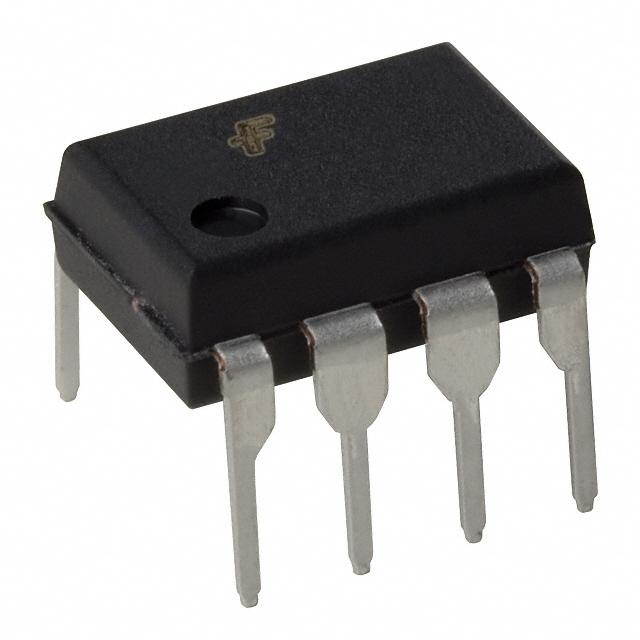

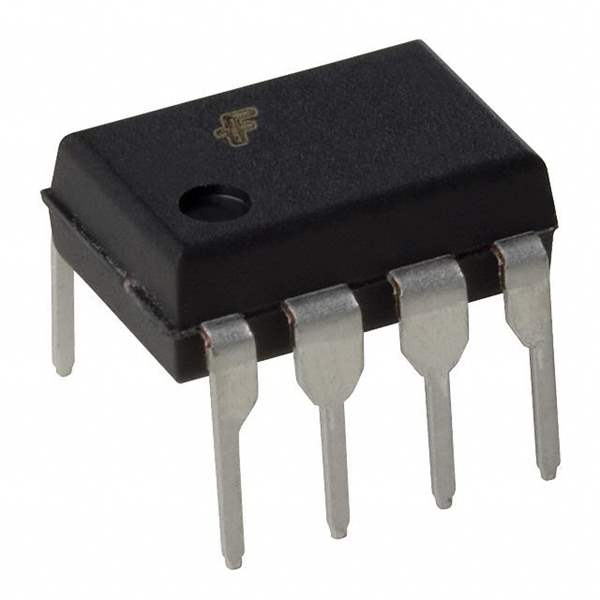

HCPL-4503M Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

HCPL-4503M

Part No HCPL-4503M
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 8DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 19% @ 16mA
Maximum DC Current Transfer Ratio 50% @ 16mA
Switching Turn-On and Turn-Off Time 250ns, 260ns
Input Type DC
Maximum Output Voltage 20V
Channel Output Current 8mA
Forward Voltage 1.45V
Continuous forward current- Max 25mA
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Case / Package 8-DIP
Win Source Part Number 067917-HCPL-4503M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HCPL-4503M CAD Model

Description

The Fairchild/ON Semiconductor HCPL-4503M is an active isolator.

  • Mounting: Through-Hole
  • Channel: 1
  • Input Type: DC
  • Isolation Voltage: 5000Vrms
  • Forward Voltage: 1.45V
  • Minimum DC Current Transfer Ratio: 19% @ 16mA
  • Maximum DC Current Transfer Ratio: 50% @ 16mA
  • Switching Turn-On Time: 250ns
  • Switching Turn-Off Time: 260ns
  • Maximum Output Voltage: 20V
  • Channel Output Current: 8mA
  • Continuous Forward Current-Max: 25mA
  • Operating Temperature: -40℃ to 100℃
  • Popularity: Medium
  • Supply and Demand: Balanced
