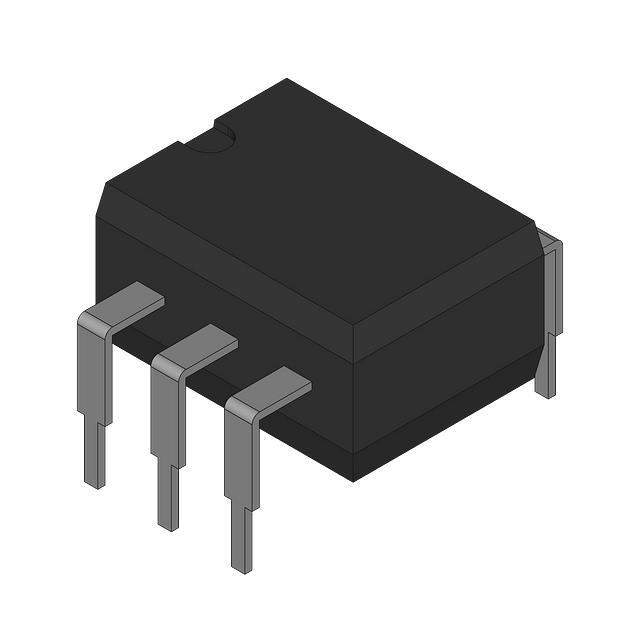

H11N2TVM

Part No H11N2TVM
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Logic Output
Description OPTOISO 4.17KV OPN COLL 6DIP
Datasheet
H11N2TVM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 4170Vrms
Input Type DC
Output Type Open Collector
Channel Output Current 50mA
Data Rate 5MHz
Propagation Delay tpLH / tpHL (Max) 330ns, 330ns
Rise and Fall Time 7.5ns, 12ns
Forward Voltage 1.4V
Continuous forward current- Max 30mA
Supply Voltage - Operating 4 V to 15 V
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Case / Package 6-DIP
Win Source Part Number 1042225-H11N2TVM
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian H11N2TVM CAD Model

Description

The Fairchild/ON Semiconductor electronic component with Win Source Part Number 1042225-H11N2TVM is an isolator product with a data rate of 5MHz.

  • Data Rate: 5MHz
  • Packaging: tube/rail
  • Mounting: through hole
  • Output Type: open collector
  • Input Type: DC
  • Channel: 1
  • Inputs Side 1/Side 2: 1/0
  • Common Mode Transient Immunity: not specified
  • Propagation Delay tpLH / tpHL (Max): 330ns, 330ns
  • Isolation Voltage: 4170Vrms
  • Operating Temperature Range: -40°C to 85°C
  • Case/Package: 6-DIP
  • Operating Supply Voltage: 4V to 15V
  • Quantity per Package: 50
