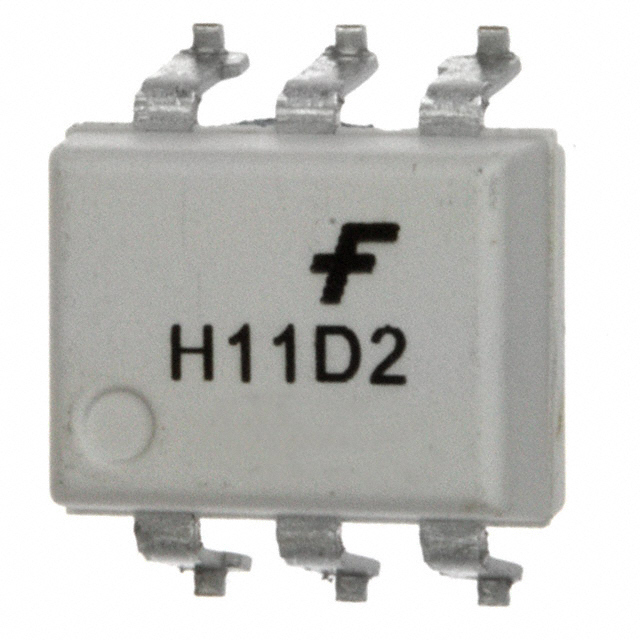

H11D2SR2M Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

H11D2SR2M

Part No H11D2SR2M
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 7.5KV TRANS W/BASE 6SMD / Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP SMD White T/R
Datasheet
H11D2SR2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel package
Part Status Obsolete(EOL)
Number of Channels 1
Voltage - Isolation 7500Vpk
Current Transfer Ratio (Minimum) 20% @ 10mA
Turn On / Turn Off Time (Typ) 5μs, 5μs
Input Type DC
Output Type Transistor with Base
Output Voltage MAX 300V
Output Current per Channel 100mA
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Maximum) 80mA
Vce Saturation (Maximum) 400mV
Operating Temperature Range -40°C ~ 100°C
Mounting SMD
Package 6-SMD, Gull Wing
Manufacturer Package 6-SMD
Win Source Part Number 775531-H11D2SR2M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Family Name H11D2M
Introduction Date September 01, 2007
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian H11D2SR2M CAD Model

Description

The H11D2SR2M from Fairchild/ON Semiconductor is a 6-SMD, gull wing package isolator.

  • Output Type: Transistor with Base
  • Input Type: DC
  • Voltage - Forward (Vf) (typ): 1.15V
  • Voltage - Isolation: 7500Vpk
  • Output Voltage (Max): 300V
  • Output Current per Channel: 100mA
  • Current - DC Forward (If) (maximum): 80mA
  • Current Transfer Ratio (minimum): 20% @ 10mA
  • Vce Saturation (maximum): 400mV
  • Turn On / Turn Off Time (typ): 5μs, 5μs
  • Number of Channels: 1
  • Operating Temperature: -40°C to 100°C
  • Package: 6-SMD
  • Status: Obsolete (EOL)
  • Alternative Parts: Available
