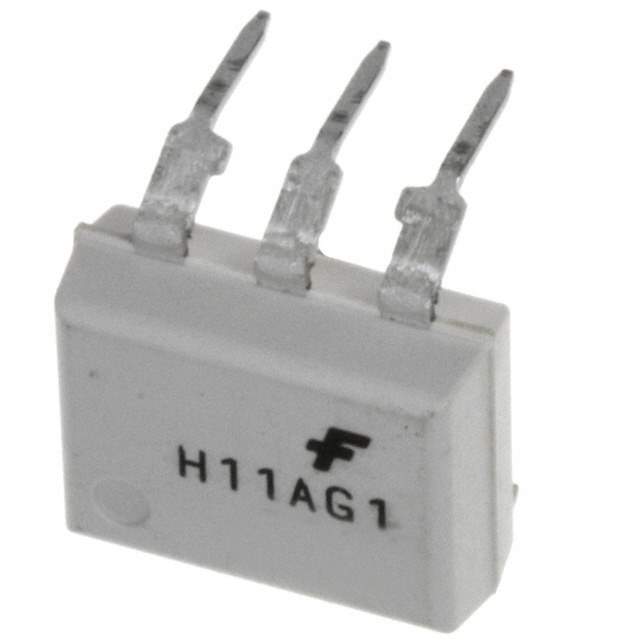

H11AG1TVM Real Image
Same model may have multiple batches, images only for reference.

H11AG1TVM

Part No H11AG1TVM
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 4.17KV TRANS W/BASE 6DIP
Datasheet
H11AG1TVM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 4170Vrms
Minimum DC Current Transfer Ratio 100% @ 1mA
Switching Turn-On and Turn-Off Time 5μs, 5μs
Input Type DC
Maximum Output Voltage 30V
Channel Output Current 50mA
Forward Voltage 1.25V
Continuous forward current- Max 50mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Win Source Part Number 1042115-H11AG1TVM
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian H11AG1TVM CAD Model

Description

The Fairchild/ON Semiconductor H11AG1TVM is an isolator designed for use in a variety of electronic devices.

  • Channel: one channel
  • Input Types: compatible with DC input types
  • Operating Temperature Range: -40°C to 100°C
  • Case/Package: comes in a 6-DIP case/package
  • Minimum DC Current Transfer Ratio: 100% @ 1mA
  • Maximum Output Voltage: 30V
  • Application: commonly used in isolator applications
  • Packaging: available in a tube/rail packaging
  • Supply and Demand Status: balanced
  • Package Quantity: 1k pcs
