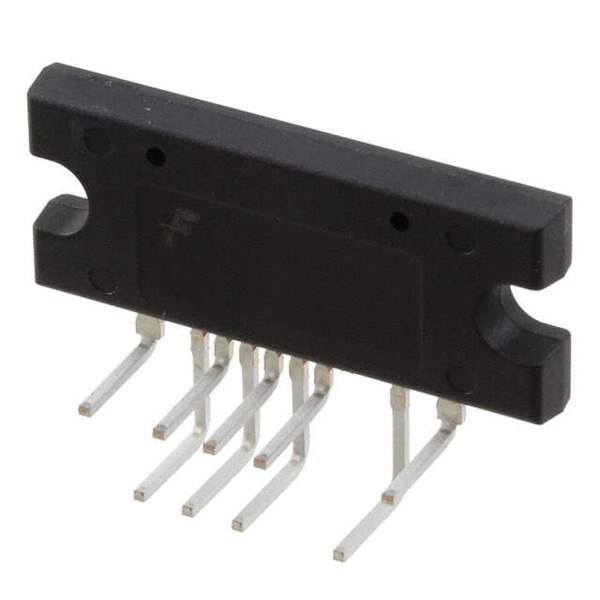

FSFR1800XSL Real Image
Same model may have multiple batches, images only for reference.

FSFR1800XSL

Part No FSFR1800XSL
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC FPS PWR SWITCH 260W 9-SIPL
Datasheet
FSFR1800XSL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 500V
Topology Half-Bridge
Voltage - Start Up 12.5V
Supply Voltage - Operating 10 V to 25 V
Duty Cycle 50%
Frequency - Switching Up to 300kHz
Power (Watts) 260W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Features Frequency Control
Temperature Range - Operating -40°C to 130°C (TJ)
Case / Package 9-SIP (L forming)
Mounting Through Hole
Win Source Part Number 067516-FSFR1800XSL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 380
Ultra Librarian 3D Model Ultra Librarian FSFR1800XSL CAD Model

Description

The FSFR1800XSL is a half-bridge integrated circuit designed for power conversion applications. It has a power of 260W and an output isolation.

  • Power: 260W
  • Output Isolation: Isolated
  • Voltage Breakdown: 500V
  • Duty Cycle: 50%
  • Frequency: Up to 300kHz
  • Fault Protection: Current Limiting, Over Temperature, Over Voltage
  • Package: 9-SIP (L forming)
  • Operating Temperature: -40°C to 130°C (TJ)
  • Manufacturer: Fairchild/ON Semiconductor
