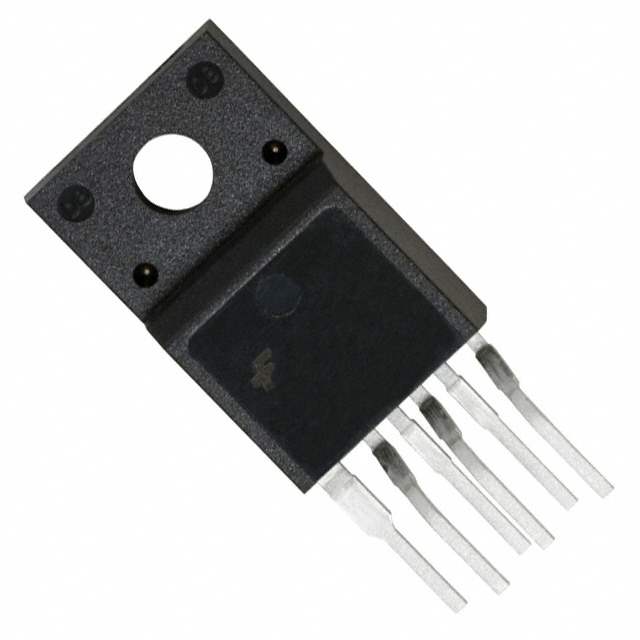

FSDM0565RBWDTU Real Image
Same model may have multiple batches, images only for reference.

FSDM0565RBWDTU

Part No FSDM0565RBWDTU
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC SWIT PWM GREEN CM HV TO220F
Datasheet
FSDM0565RBWDTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Not For New Designs
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 650V
Topology Flyback
Voltage - Start Up 12V
Supply Voltage - Operating 8 V to 20 V
Duty Cycle 82%
Frequency - Switching 66kHz
Power (Watts) 70W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage
Control Operating Temperature -25°C to 85°C (TA)
Case / Package TO-220F-6L (Forming)
Mounting Through Hole
Win Source Part Number 014343-FSDM0565RBWDTU
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FSDM0565RBWDTU CAD Model

Description

The Fairchild/ON Semiconductor 014343-FSDM0565RBWDTU is a flyback topology integrated circuit with an isolated output.

  • Mounting: Through-Hole
  • Power: 70W
  • Voltage Breakdown: 650V
  • Voltage Start-Up: 12V
  • Duty Cycle: 82%
  • Frequency Switching: 66kHz
  • Fault Protection: Current Limiting, Over Load, Over Temperature, Over Voltage
  • Temperature Range: -25°C to 85°C (TA)
  • Supply Voltage: 8V to 20V
  • Status: Not for New Designs
  • Packaging: Tube/Rail
  • Popularity: Medium
  • Supply and Demand: Limited
