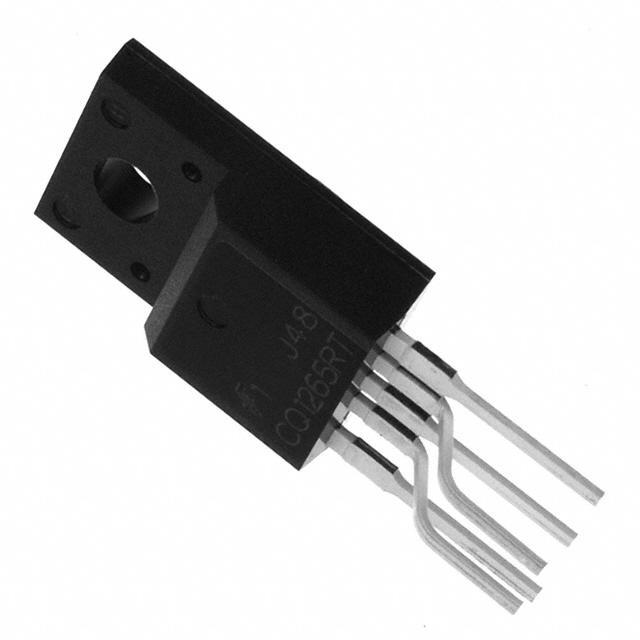

FSCQ1265RTYDTU Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FSCQ1265RTYDTU

Part No FSCQ1265RTYDTU
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC SWIT PWM GREEN OVP HV TO220
Datasheet
FSCQ1265RTYDTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 650V
Topology Flyback
Voltage - Start Up 15V
Supply Voltage - Operating 9 V to 20 V
Duty Cycle 95%
Frequency - Switching 20kHz
Power (Watts) 170W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features Sync
Temperature Range - Operating -25°C to 85°C (TA)
Case / Package TO-220F-5L (Forming)
Mounting Through Hole
Win Source Part Number 040359-FSCQ1265RTYDTU
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian FSCQ1265RTYDTU CAD Model

Description

The Fairchild/ON Semiconductor 040359-FSCQ1265RTYDTU is a flyback topology integrated circuit with high popularity and a limited supply and demand status.

  • Topology: Flyback
  • Output Isolation: Isolated
  • Internal Switch: Yes
  • Breakdown Voltage: 650V
  • Duty Cycle: 95%
  • Switching Frequency: 20kHz
  • Fault Protection: Current Limiting, Over Load, Over Temperature, Over Voltage
  • Control Feature: Sync
  • Operating Temperature: -25°C to 85°C
  • Package Type: TO-220F-5L (Forming)
  • Supply Voltage: 9V to 20V
  • Package Quantity: 400
