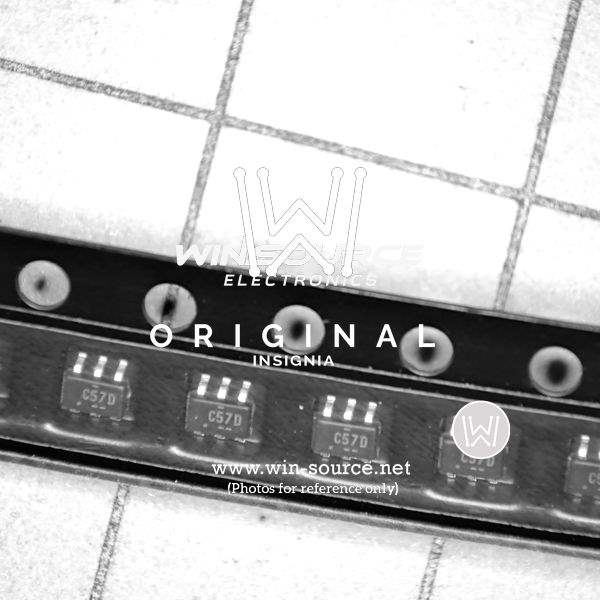

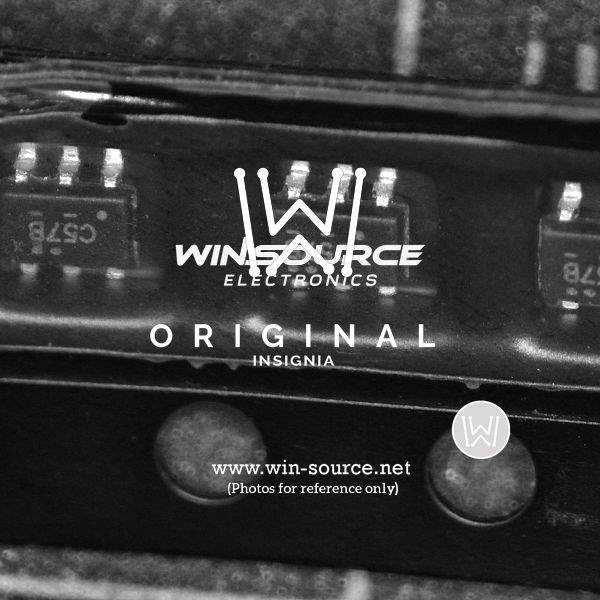

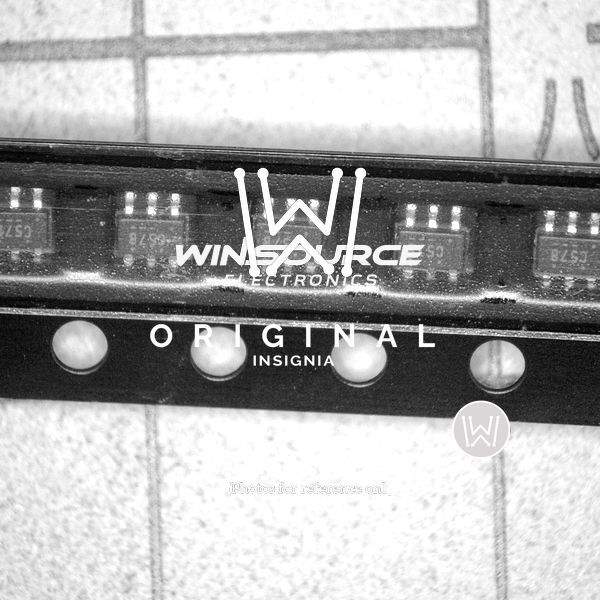

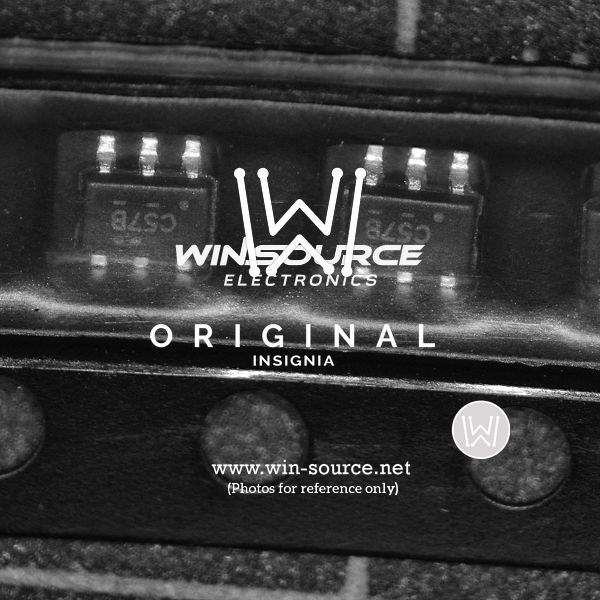

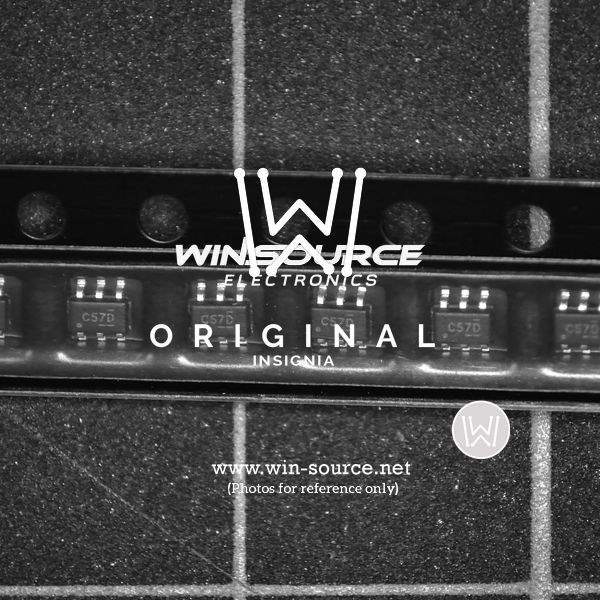

FSA5157P6X Fairchild/ON Semiconductor FSA5157P6X Real Image FSA5157P6X real image4260 FSA5157P6X Real Image1 FSA5157P6X Real Image2 FSA5157P6X Real Image3 FSA5157P6X Real Image4
Same model may have multiple batches, images only for reference.
FSA5157P6X Fairchild/ON Semiconductor FSA5157P6X Real Image FSA5157P6X real image4260 FSA5157P6X Real Image1 FSA5157P6X Real Image2 FSA5157P6X Real Image3 FSA5157P6X Real Image4
FSA5157P6X Fairchild/ON Semiconductor FSA5157P6X Real Image FSA5157P6X real image4260 FSA5157P6X Real Image1 FSA5157P6X Real Image2 FSA5157P6X Real Image3 FSA5157P6X Real Image4
Same model may have multiple batches, images only for reference.

FSA5157P6X

Part No FSA5157P6X
Manufacturer Fairchild/ON Semiconductor
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH SPDT SC70-6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Switch Circuit SPDT
Number of Circuits 1
Max On Resistance 360 mOhm (Typ)
Channel-to-Channel Matching (ΔRon) 40 mOhm
Single Supply Voltage (V+) 1.65 V to 4.3 V
Max Switch Time (Ton,Toff) 55ns, 30ns
-3db Bandwidth 80MHz
Charge Injection 6pC
Channel Capacitance(CS off, CD off) 21pF
Max Leakage Current (IS off) 10nA
Crosstalk -75dB @ 100kHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package SC-70-6
Win Source Part Number 128513-FSA5157P6X
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FSA5157P6X CAD Model

Description

The FSA5157P6X is a SPDT switch circuit integrated circuit manufactured by Fairchild/ON Semiconductor.

  • -3db Bandwidth: 80MHz
  • Charge Injection: 6pC
  • Crosstalk: -75dB @ 100kHz
  • Channel-to-Channel Matching (ΔRon): 40 mOhm
  • Single Supply Voltage: 1.65 V to 4.3 V
  • Maximum On Resistance: 360 mOhm
  • Package: SC-70-6
  • Supply and Demand: Balanced
