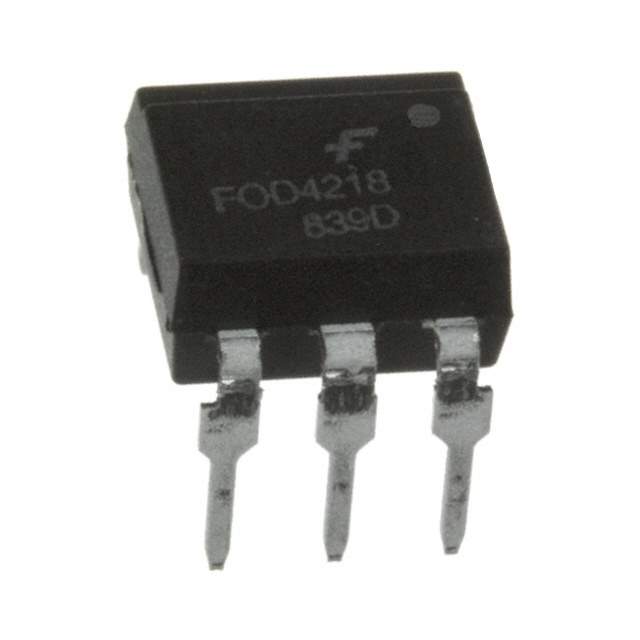

FOD4218V Real Image
Same model may have multiple batches, images only for reference.

FOD4218V

Part No FOD4218V
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6DIP / Optocoupler Triac AC-OUT 1-CH 800V 6-Pin PDIP Black Bag
Datasheet
FOD4218V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 800V
Static dV/dt (Minimum) 10kV/μs
Current - LED Trigger (Ift) (Maximum) 1.3mA
Current - On State (It (RMS)) (Maximum) 300mA
Current - Hold (Ih) 500μA
Turn On Time 60μs
Voltage - Forward (Vf) (Typ) 1.28V
Current - DC Forward (If) (Maximum) 30mA
Operating Temperature Range -55°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.300", 7.62mm)
Manufacturer Package 6-DIP
Approvals cUL, FIMKO, UL, VDE
Win Source Part Number 774666-FOD4218V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name FOD4218
Introduction Date March 01, 2008
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian FOD4218V CAD Model

Description

The Fairchild/ON Semiconductor FOD4218V is a single-channel optocoupler with a triac output. Fairchild/ON Semiconductor.

  • Forward Voltage: 1.28V
  • Off-State Voltage: 800V
  • Voltage: 5000Vrms
  • Maximum Current: 300mA
  • Package: 6-DIP
  • Compliance: RoHS
  • Approvals: cUL, FIMKO, UL, and VDE
  • Turn On Time: 60μs
  • Static dV/dt: 10kV/μs
