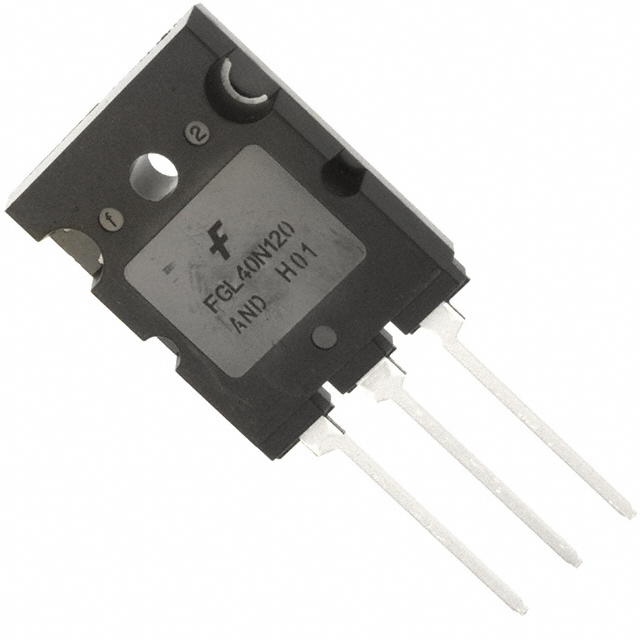

The Fairchild/ON Semiconductor 087366-FGL40N120AND is an NPT IGBT with a maximum collector-emitter breakdown voltage of 1200V. It is categorized under discrete semiconductor products and is mounted using through-hole.

• Maximum current collector: 64A
• Maximum power dissipation: 500W
• Collector-emitter saturation voltage (Max): 3.2V @ 15V, 40A
• Total switching energy (Ets): 2.3mJ (on), 1.1mJ (off)
• Turn-on and turn-off delay time: 15ns/110ns
• Reverse recovery time (trr): 112ns
• Gate charge: 220nC
• The part is not for new designs and has high popularity.
• The part has an ECCN of EAR99 and was manufactured in the Philippines.
