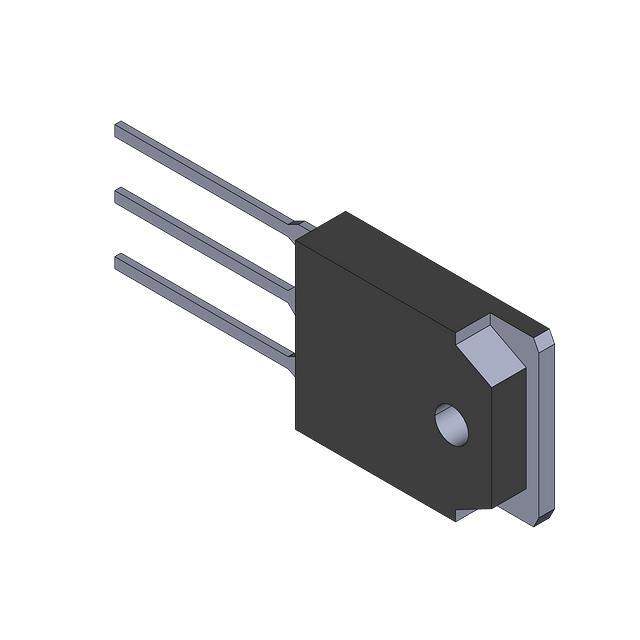

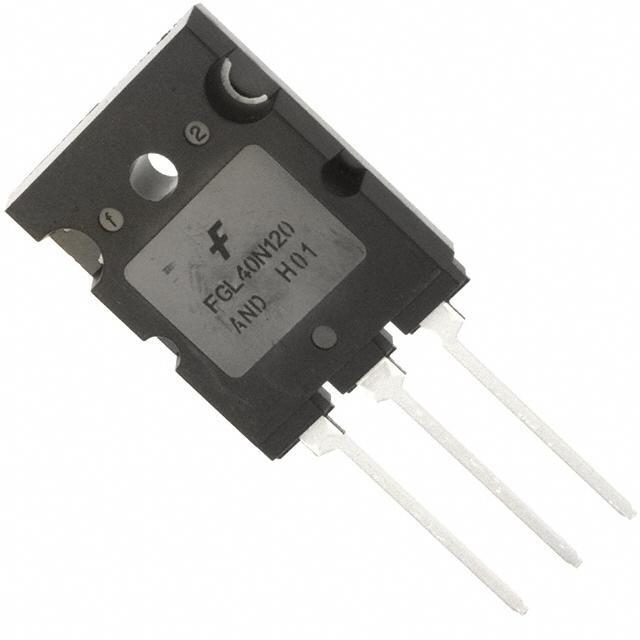

FGL40N120ANDTU Fairchild/ON Semiconductor FGL40N120ANDTU Real Image FGL40N120ANDTU real image 2 FGL40N120ANDTU label picture
Same model may have multiple batches, images only for reference.
FGL40N120ANDTU Fairchild/ON Semiconductor FGL40N120ANDTU Real Image FGL40N120ANDTU real image 2 FGL40N120ANDTU label picture
FGL40N120ANDTU Fairchild/ON Semiconductor FGL40N120ANDTU Real Image FGL40N120ANDTU real image 2 FGL40N120ANDTU label picture
Same model may have multiple batches, images only for reference.

FGL40N120ANDTU

Part No FGL40N120ANDTU
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT 1200V 64A 500W TO264
Datasheet
FGL40N120ANDTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Not For New Designs
IGBT Type NPT
VCEO Maximum Collector-Emitter Breakdown Voltage 1200V
Maximum Current Collector 64A
Pulsed Collector Current 160A
Collector-emitter saturation voltage(Max) 3.2V @ 15V, 40A
Maximum Power Dissipation 500W
Total Switching Energy(Ets) 2.3mJ (on), 1.1mJ (off)
Input Type Standard
Gate Charge 220nC
Turn-on and Turn-off delay time 15ns/110ns
Testing Conditions 600V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) 112ns
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-264
Win Source Part Number 067191-FGL40N120ANDTU
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name FGL40N120A
Introduction Date September 14, 2004
ECCN EAR99
Country of Origin China, Republic of Korea
Halogen Free Compliant
Estimated EOL Date 2023
Quantity per package 375
Ultra Librarian 3D Model Ultra Librarian FGL40N120ANDTU CAD Model

Description

The FGL40N120ANDTU is an NPT IGBT from Fairchild/ON Semiconductor, widely used in discrete semiconductor products.

  • Maximum collector-emitter breakdown voltage: 1200V
  • Maximum power dissipation: 500W
  • Reverse recovery time: 112ns
  • Turn-on and turn-off delay time: 15ns/110ns
  • Package: TO-264
  • Quantity per package: 375
