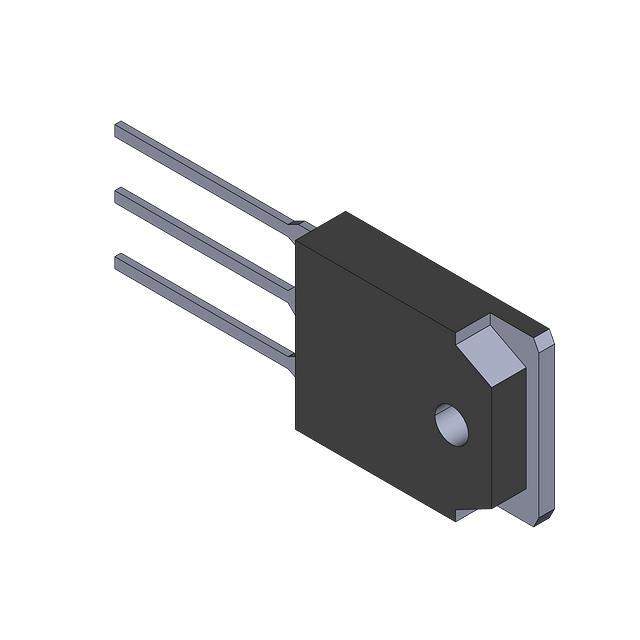

Same model may have multiple batches, images only for reference.

FGA6540WDF

Name: FGA6540WDF
Brand: Fairchild/ON Semiconductor
SKU: 774530
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FGA6540WDF
Manufacturer	Fairchild/ON Semiconductor
Catalog	IGBTs - Single
Description	IGBT 650V 80A 238W TO-3PN / Trans IGBT Chip N-CH 650V 80A 238000mW 3-Pin(3+Tab) TO-3P Tube
Datasheet	FGA6540WDF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Tube
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Maximum)	650V
Current - Collector (Ic) (Maximum)	80A
Current - Collector Pulsed (Icm)	120A
Vce(on) (Maximum) @ Vge, Ic	2.3V @ 15V, 40A
Power - Max	238W
Switching Energy	1.37mJ (on), 250μJ (off)
Input Type	Standard
Gate Charge	55.5nC
Td (on/off) @ 25°C	16.8ns/54.4ns
Test Condition	400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr)	101ns
Operating Temperature Range	-55°C ~ 175°C (TJ)
Mounting Style	Through Hole
Package	TO-3P-3, SC-65-3
Manufacturer Package	TO-3PN
Win Source Part Number	774530-FGA6540WDF
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	450
Family Name	FGA6540WDF
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian FGA6540WDF CAD Model

Description

The Fairchild/ON Semiconductor FGA6540WDF is a Trench Field Stop IGBT used in electronic devices. It has a power max of 238W and a reverse recovery time (trr) of 101ns.

Package: TO-3P-3, SC-65-3
Packaging: Tube
Suitable for: Discrete Semiconductor Products
ECCN: EAR99
Supply and Demand Status: Limited
Quantity per Package: 450
Alternative Parts (Cross-Reference): STGWT60H60DLFB, STGWT30H65FB, STGWT30V60F, and STGWT40H65FB
