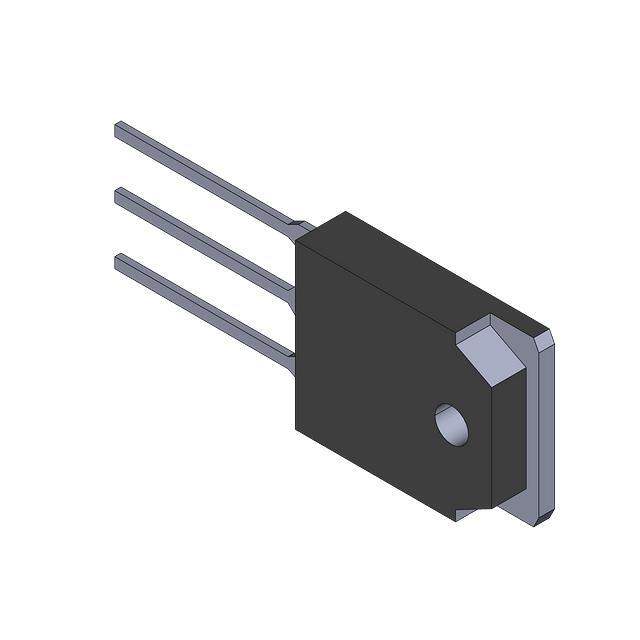

FGA25S125P

Name: FGA25S125P
Brand: Fairchild/ON Semiconductor
SKU: 130419
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FGA25S125P
Manufacturer	Fairchild/ON Semiconductor
Catalog	IGBTs - Single
Description	IGBT 1250V 50A 250W TO-3PN
Datasheet	FGA25S125P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Tube/Rail
Status	Active
IGBT Type	Trench Field Stop
VCEO Maximum Collector-Emitter Breakdown Voltage	1250V
Maximum Current Collector	50A
Pulsed Collector Current	75A
Collector-emitter saturation voltage(Max)	2.35V @ 15V, 25A
Maximum Power Dissipation	250W
Total Switching Energy(Ets)	1.09mJ (on), 580μJ (off)
Input Type	Standard
Gate Charge	204nC
Turn-on and Turn-off delay time	24ns/502ns
Testing Conditions	600V, 25A, 10 Ohm, 15V
Temperature Range - Operating	-55°C to 175°C (TJ)
Mounting	Through Hole
Case / Package	TO-3PN
Win Source Part Number	204169-FGA25S125P
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	30
Ultra Librarian 3D Model	Ultra Librarian FGA25S125P CAD Model

Description

The Fairchild/ON Semiconductor IGBT type Trench Field Stop is a high-power, high-voltage transistor.

Maximum Collector-Emitter Breakdown Voltage: 1250V
Maximum Current Collector: 50A
Package: TO-3PN
Operating Temperature: -55°C to 175°C (TJ)
Gate Charge: 204nC
Collector-Emitter Saturation Voltage (Max): 2.35V @ 15V, 25A
Total Switching Energy (Ets): 1.09mJ (on), 580μJ (off)
Turn-On/Turn-Off Delay Time: 24ns / 502ns
Status: Active
Supply and Demand: Limited
Popularity: Medium
Quantity per Package: 30
