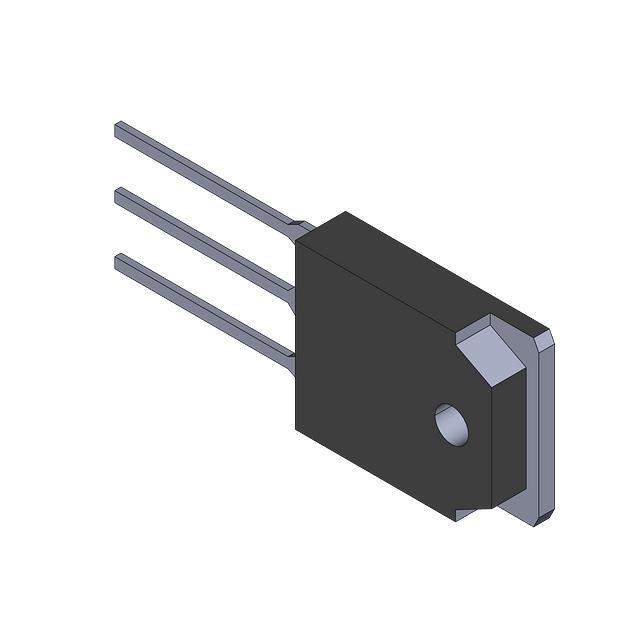

FGA15S125P Real Image
Same model may have multiple batches, images only for reference.

FGA15S125P

Part No FGA15S125P
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description 1250 V, 15 A Shorted-anode IGBT
Datasheet
FGA15S125P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
IGBT Type Trench
Voltage - Collector Emitter Breakdown (Maximum) 1250V
Current - Collector (Ic) (Maximum) 30A
Current - Collector Pulsed (Icm) 45A
Vce(on) (Maximum) @ Vge, Ic 2.72V @ 15V, 15A
Power - Max 136W
Input Type Standard
Gate Charge 129nC
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Style Through Hole
Package TO-3P-3, SC-65-3
Manufacturer Package TO-3PN
Win Source Part Number 1174147-FGA15S125P
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Family Name FGA15S125P
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Quantity per package 450
Ultra Librarian 3D Model Ultra Librarian FGA15S125P CAD Model

Description

The Fairchild/ON Semiconductor FGA15S125P is a trench IGBT designed for use in discrete semiconductor products.

  • Collector-Emitter Breakdown Voltage: 1250V (Max)
  • Collector Current: 30A (Max)
  • Package: TO-3P-3, SC-65-3
  • Operating Temperature: Up to 175°C (TJ)
  • Power: 136W
  • Gate Charge: 129nC
  • Supply and Demand Status: Limited
  • Package Quantity: 450
